TensorFlow 2 Object Detection API (オブジェクト検出 API)のインストールと一般物体検出(TensorFlow のチュートリアルのプログラムを使用)(Google Colab あるいは Ubuntu 上)
一般物体検出を行う.
- 次のページの記載に従って,TensorFlow 2 Object Detection API (オブジェクト検出 API)をインストールする.
https://tensorflow-object-detection-api-tutorial.readthedocs.io/en/latest/install.html
- 一般物体検出を行うために,次のページ(チュートリアルのページ)に記載の Pythonプログラムをそのまま用いる.
- このプログラムでは,CenterNet HourGlass104 1024x1024 を用いている. そして,COCO データセットを用いて事前学習済みのものを用いている.
用語:
- モデルの学習:モデルの学習は,ニューラルネットワークの結合の重みを変化させることにより行う
- 事前学習済みのモデル:データセット(ニューラルネットワークの入力と所定の出力)を使って学習済みのモデル.インターネットで公開されているものを利用することができる.
Google Colab へのリンク
次の URL で,Google Colaboratory のノートブックを準備している.
次のリンクをクリックすると,Google Colaboratory のノートブックが開く. そして,Google アカウントでログインすると,Google Colaboratory のノートブック内のコード等を編集したり再実行したりができる.編集した場合でも,他の人に影響が出たりということはない.そして,編集後のものを,各自の Google ドライブ内に保存することもできる.
https://colab.research.google.com/drive/1HCLnXLqZcMwV52ss8G57ZpJRvc4ZBqBr?usp=sharing
TensorFlow Models のインストール
- protobuf-compiler のインストール
sudo apt -yV install protobuf-compiler
- TensorFlow models のダウンロード,TensorFlow Object Detection API のインストール
まずは、環境変数 MYDIR にディレクトリを設定。MYDIR は、あとで使う。
次の書き方は、環境変数を使うためのもの.
sudo mkdir /content sudo chown $USER /content export MYDIR=/content
Google Colaboratory で環境変数を使うときは,次のように書くimport os os.environ['MYDIR']='/content'
次に,TensorFlow models のダウンロード,TensorFlow Object Detection API のインストール
MYDIR で設定したディレクトリを使う.
プロトコル・バッファ・コンパイラ (protocol buffer compiler) を使用
# TensorFlow models rm -rf ${MYDIR}/models cd ${MYDIR} && git clone https://github.com/tensorflow/models.git # Compile protos. cd ${MYDIR}/models/research protoc object_detection/protos/*.proto --python_out=. # Install TensorFlow Object Detection API cd $MYDIR/models/research cp object_detection/packages/tf2/setup.py . sudo apt -yV install python3-pip3 cd $MYDIR/models/research && sudo pip3 install .
- pycocotools のインストール
MYDIR で設定したディレクトリを使う
rm -rf $MYDIR/cocoapi cd $MYDIR && git clone https://github.com/cocodataset/cocoapi.git cd $MYDIR && cd cocoapi/PythonAPI && python3 setup.py build_ext --inplace cd $MYDIR/cocoapi/PythonAPI && cp -r pycocotools $MYDIR/models/research/
- 今までのインストールの確認
最後に「OK ...」のように表示されることを確認.
cd $MYDIR/models/research && python3 object_detection/builders/model_builder_tf2_test.py
- object_detection を Python 実行時のカレントディレクトリに置く操作
最後に「Finished processing dependencies for object-detection...」のように表示されることを確認.
cp $MYDIR/models/research/object_detection/packages/tf2/setup.py . python3 setup.py build && sudo python3 setup.py install
- テスト画像のダウンロード、処理対象となる画像ファイル名の設定など
TensorFlow models のテスト画像をダウンロードする.
テスト画像のダウンロード、処理対処となる画像ファイル名の設定は、 次で公開されているプログラムをそのまま使用.
import os os.environ['TF_CPP_MIN_LOG_LEVEL'] = '2' # Suppress TensorFlow logging (1) import pathlib import tensorflow as tf tf.get_logger().setLevel('ERROR') # Suppress TensorFlow logging (2) # Enable GPU dynamic memory allocation gpus = tf.config.experimental.list_physical_devices('GPU') for gpu in gpus: tf.config.experimental.set_memory_growth(gpu, True) def download_images(): base_url = 'https://raw.githubusercontent.com/tensorflow/models/master/research/object_detection/test_images/' filenames = ['image1.jpg', 'image2.jpg'] image_paths = [] for filename in filenames: image_path = tf.keras.utils.get_file(fname=filename, origin=base_url + filename, untar=False) image_path = pathlib.Path(image_path) image_paths.append(str(image_path)) return image_paths IMAGE_PATHS = download_images()
- COCO データセットで学習済みのモデルのダウンロード
TensorFlow models のものをダウンロード
ダウンロードを行うために,次で公開されているプログラムをそのまま使用.
# Download and extract model def download_model(model_name, model_date): base_url = 'http://download.tensorflow.org/models/object_detection/tf2/' model_file = model_name + '.tar.gz' model_dir = tf.keras.utils.get_file(fname=model_name, origin=base_url + model_date + '/' + model_file, untar=True) return str(model_dir) MODEL_DATE = '20200711' MODEL_NAME = 'centernet_hg104_1024x1024_coco17_tpu-32' PATH_TO_MODEL_DIR = download_model(MODEL_NAME, MODEL_DATE)
- ラベルに関するデータのダウンロード
TensorFlow models のものをダウンロード
ダウンロードを行うために,次で公開されているプログラムをそのまま使用.
# Download labels file def download_labels(filename): base_url = 'https://raw.githubusercontent.com/tensorflow/models/master/research/object_detection/data/' label_dir = tf.keras.utils.get_file(fname=filename, origin=base_url + filename, untar=False) label_dir = pathlib.Path(label_dir) return str(label_dir) LABEL_FILENAME = 'mscoco_label_map.pbtxt' PATH_TO_LABELS = download_labels(LABEL_FILENAME)
- 学習済みモデルのロード
次で公開されているプログラムをそのまま使用.
import time from object_detection.utils import label_map_util from object_detection.utils import visualization_utils as viz_utils PATH_TO_SAVED_MODEL = PATH_TO_MODEL_DIR + "/saved_model" print('Loading model...', end='') start_time = time.time() # Load saved model and build the detection function detect_fn = tf.saved_model.load(PATH_TO_SAVED_MODEL) end_time = time.time() elapsed_time = end_time - start_time print('Done! Took {} seconds'.format(elapsed_time))
- ラベルに関する処理
次で公開されているプログラムをそのまま使用.
category_index = label_map_util.create_category_index_from_labelmap(PATH_TO_LABELS, use_display_name=True)

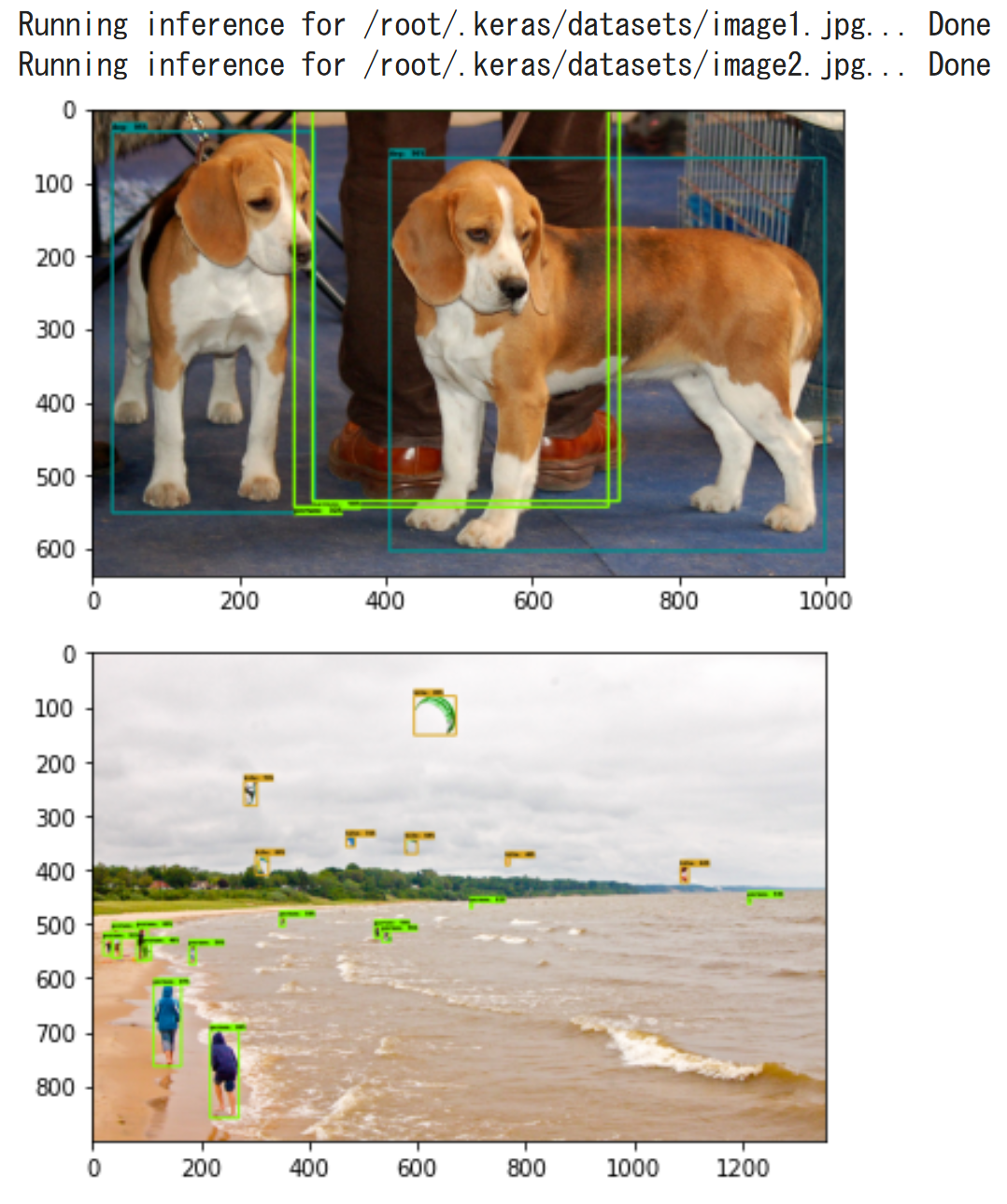

- 一般物体認識の実行
次で公開されているプログラムをそのまま使用.
import numpy as np from PIL import Image %matplotlib inline import matplotlib.pyplot as plt import warnings warnings.filterwarnings('ignore') # Suppress Matplotlib warnings def load_image_into_numpy_array(path): """Load an image from file into a numpy array. Puts image into numpy array to feed into tensorflow graph. Note that by convention we put it into a numpy array with shape (height, width, channels), where channels=3 for RGB. Args: path: the file path to the image Returns: uint8 numpy array with shape (img_height, img_width, 3) """ return np.array(Image.open(path)) for image_path in IMAGE_PATHS: print('Running inference for {}... '.format(image_path), end='') image_np = load_image_into_numpy_array(image_path) # Things to try: # Flip horizontally # image_np = np.fliplr(image_np).copy() # Convert image to grayscale # image_np = np.tile( # np.mean(image_np, 2, keepdims=True), (1, 1, 3)).astype(np.uint8) # The input needs to be a tensor, convert it using `tf.convert_to_tensor`. input_tensor = tf.convert_to_tensor(image_np) # The model expects a batch of images, so add an axis with `tf.newaxis`. input_tensor = input_tensor[tf.newaxis, ...] # input_tensor = np.expand_dims(image_np, 0) detections = detect_fn(input_tensor) # All outputs are batches tensors. # Convert to numpy arrays, and take index [0] to remove the batch dimension. # We're only interested in the first num_detections. num_detections = int(detections.pop('num_detections')) detections = {key: value[0, :num_detections].numpy() for key, value in detections.items()} detections['num_detections'] = num_detections # detection_classes should be ints. detections['detection_classes'] = detections['detection_classes'].astype(np.int64) image_np_with_detections = image_np.copy() viz_utils.visualize_boxes_and_labels_on_image_array( image_np_with_detections, detections['detection_boxes'], detections['detection_classes'], detections['detection_scores'], category_index, use_normalized_coordinates=True, max_boxes_to_draw=200, min_score_thresh=.30, agnostic_mode=False) plt.figure(figsize=(10,10), dpi=200) plt.imshow(image_np_with_detections) print('Done') plt.show()
