chen0040/keras-face のインストールと動作確認(顔認識)(TensorFlow 1.15.5,Python 3.7 を使用)(Windows 上)
次で配布されているソフトウェア
https://github.com/chen0040/keras-face
これは,顔検証と顔識別のソフトウェア.DeepFace, VGG16 + Siamese を使用.
手順の要点: 前準備として,NVIDIA CUDA 10.0, NVIDIA cuDNN 7.6.5, Python 3.7, TensorFlow 1.15.5 等をインストール.
ソフトウェア等の利用条件等は,利用者で確認すること.
謝辞:ソフトウェアの作者に感謝します
前準備
Python 3.7,Git のインストール(Windows 上)
Pythonは,プログラミング言語の1つ. Gitは,分散型のバージョン管理システム.
【手順】
- Windows で,コマンドプロンプトを管理者権限で起動する(例:Windowsキーを押し,「cmd」と入力し,「管理者として実行」を選択)
次のコマンドを実行
次のコマンドは,Python ランチャーとPython 3.7とGitをインストールし,Gitにパスを通すものである.
次のコマンドでインストールされるGitは 「git for Windows」と呼ばれるものであり, Git,MinGW などから構成されている.
winget install --scope machine Python.Launcher winget install --scope machine Python.Python.3.7 winget install --scope machine Git.Git powershell -command "$oldpath = [System.Environment]::GetEnvironmentVariable(\"Path\", \"Machine\"); $oldpath += \";c:\Program Files\Git\cmd\"; [System.Environment]::SetEnvironmentVariable(\"Path\", $oldpath, \"Machine\")"
【関連する外部ページ】
- Python の公式ページ: https://www.python.org/
- Git の公式ページ: https://git-scm.com/
【サイト内の関連ページ】
【関連項目】 Python, Git バージョン管理システム, Git の利用
TensorFlow 1.15.5, Keras 2.3.1 のインストール
C:\venv\py37\Scripts\activate.bat
python -m pip uninstall -y tensorflow tensorflow-cpu tensorflow-gpu tensorflow-intel tensorflow-text tensorflow-estimator tf-models-official tf_slim tensorflow_datasets tensorflow-hub keras keras-tuner keras-visualizer scipy pandas matplotlib
# TensorFlow 1.15.5 のため numpy, protobuf の古いバージョンを使用.エラーが出にくいと考えられる numpy 1.16.2, protobuf 3.19.4 を使用
python -m pip install -U numpy==1.16.2 protobuf==3.19.4 tensorflow-gpu==1.15.5 keras==2.3.1 scipy==1.5.4
chen0040/keras-face のインストールと動作確認(顔認識)(TensorFlow 1.15.5,Python 3.7 を使用)(Windows 上)
Windows での手順を下に示す.Ubuntu でも同様の手順になる.
- Windows で,コマンドプロンプトを管理者として実行.

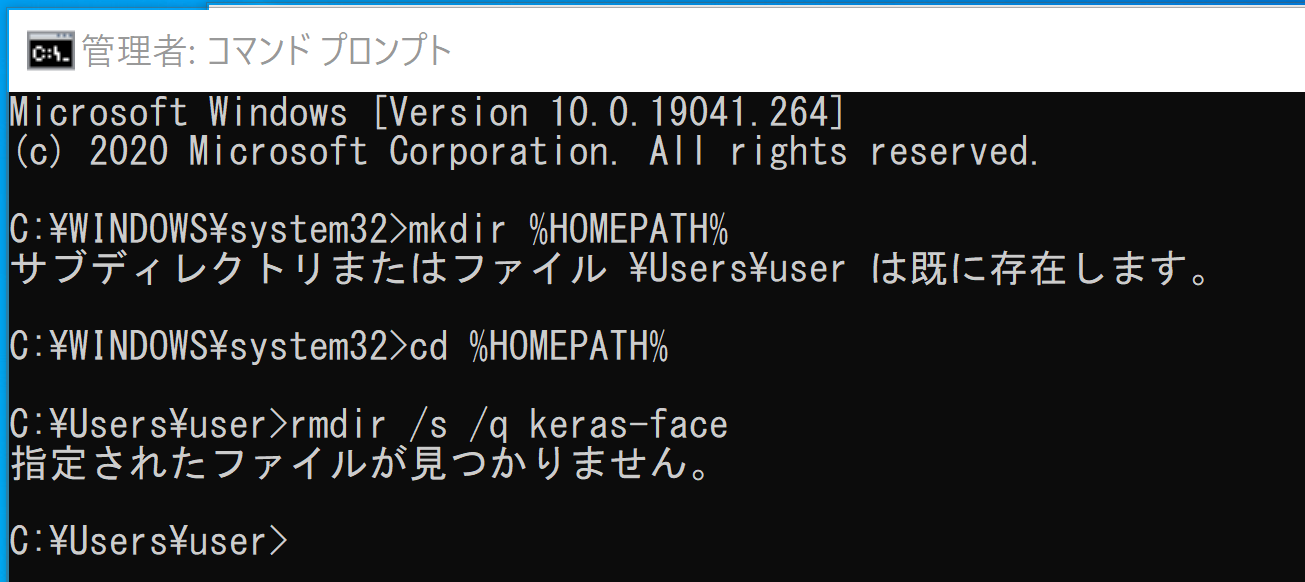

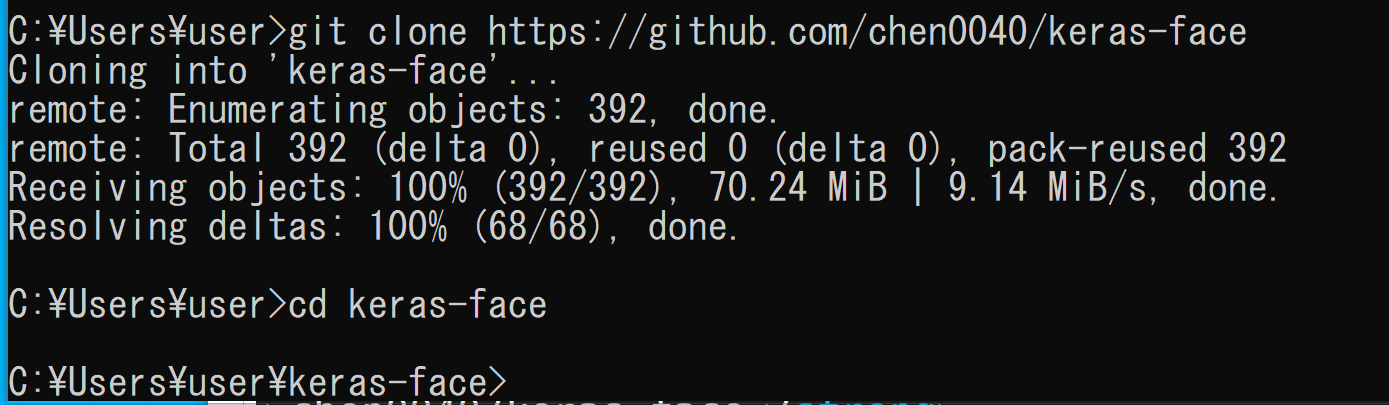

- chen0040/keras-face のダウンロード
mkdir %HOMEPATH% cd /d c:%HOMEPATH% rmdir /s /q keras-face
git clone https://github.com/chen0040/keras-face cd keras-face
- 前提パッケージのインストール
C:\venv\py37\Scripts\activate.bat python -m pip install -U numpy==1.16.2 matplotlib
- ファイルの移動
%HOMEPATH%\keras-face\demo にあるファイルを丸ごと、 %HOMEPATH%\keras-faceに移動

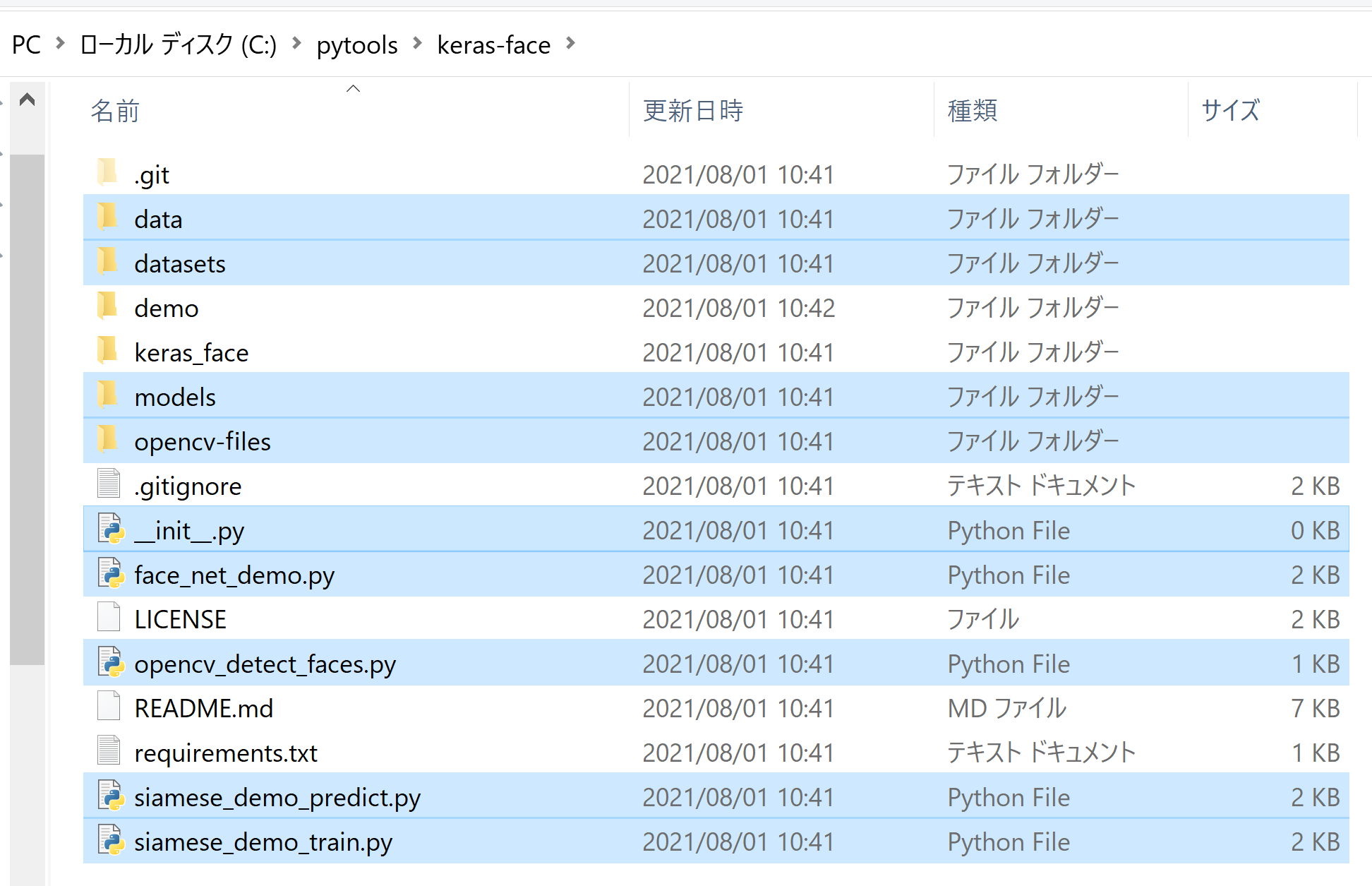

その結果、次のようになる

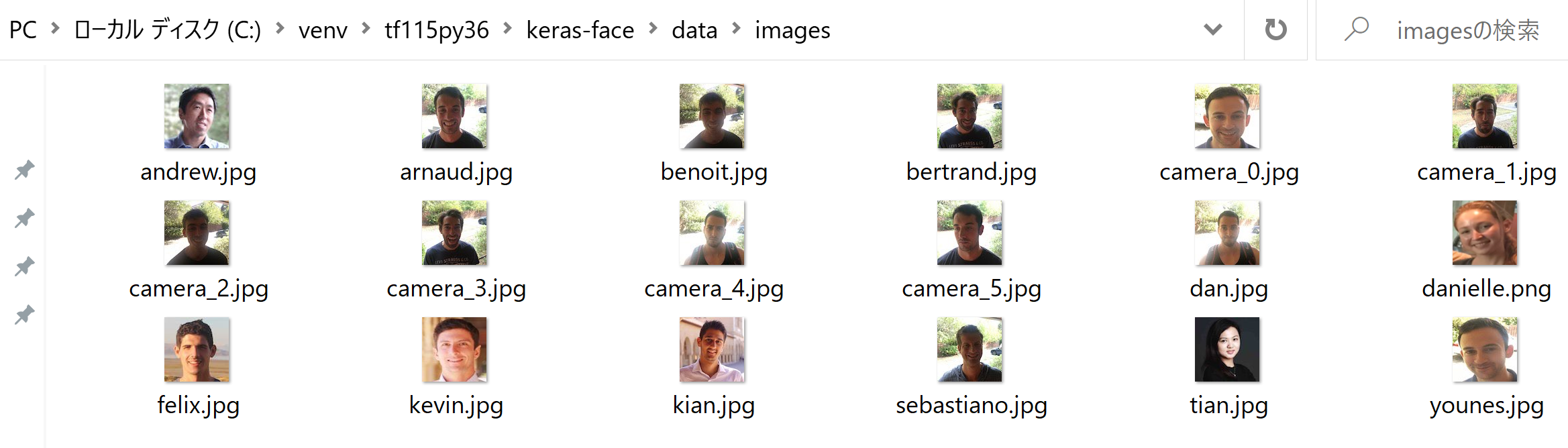

- data\images の下に、顔写真のファイルがあるので確認する
- ファイルの編集

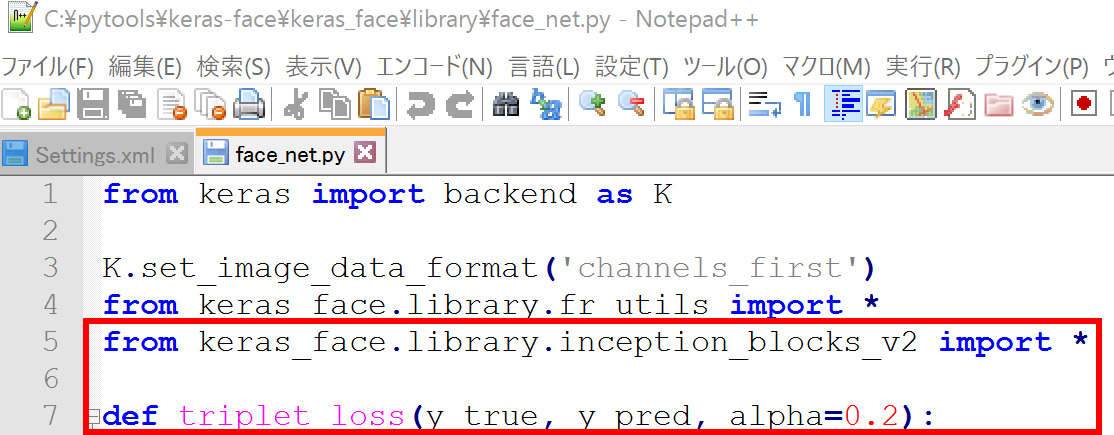

エラーの回避のため.keras_face\library\face_net.py を次のように書き換える
「np.set_printoptions(threshold=np.nan)」を削除

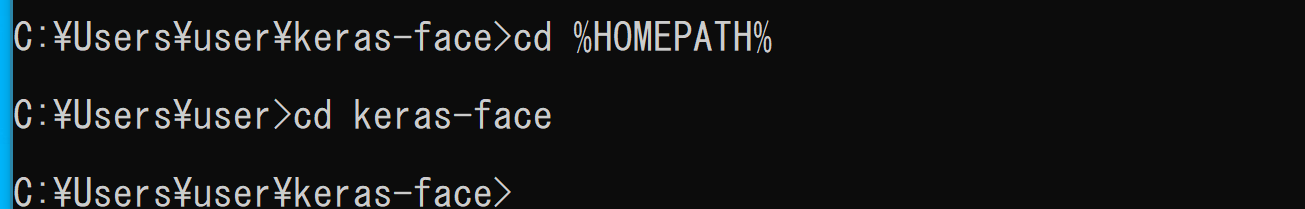

- ディレクトリの移動
cd /d c:%HOMEPATH% cd keras-face
- デモプログラム DeepFace を実行

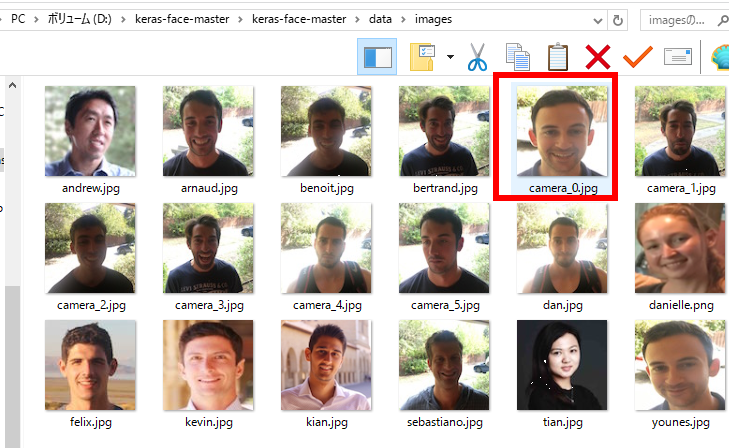

このプログラムは camera_0.jpg が誰なのかを顔認識する。
GitHub の chen0040/keras-face の Web ページに記載されている次のプログラムを使用

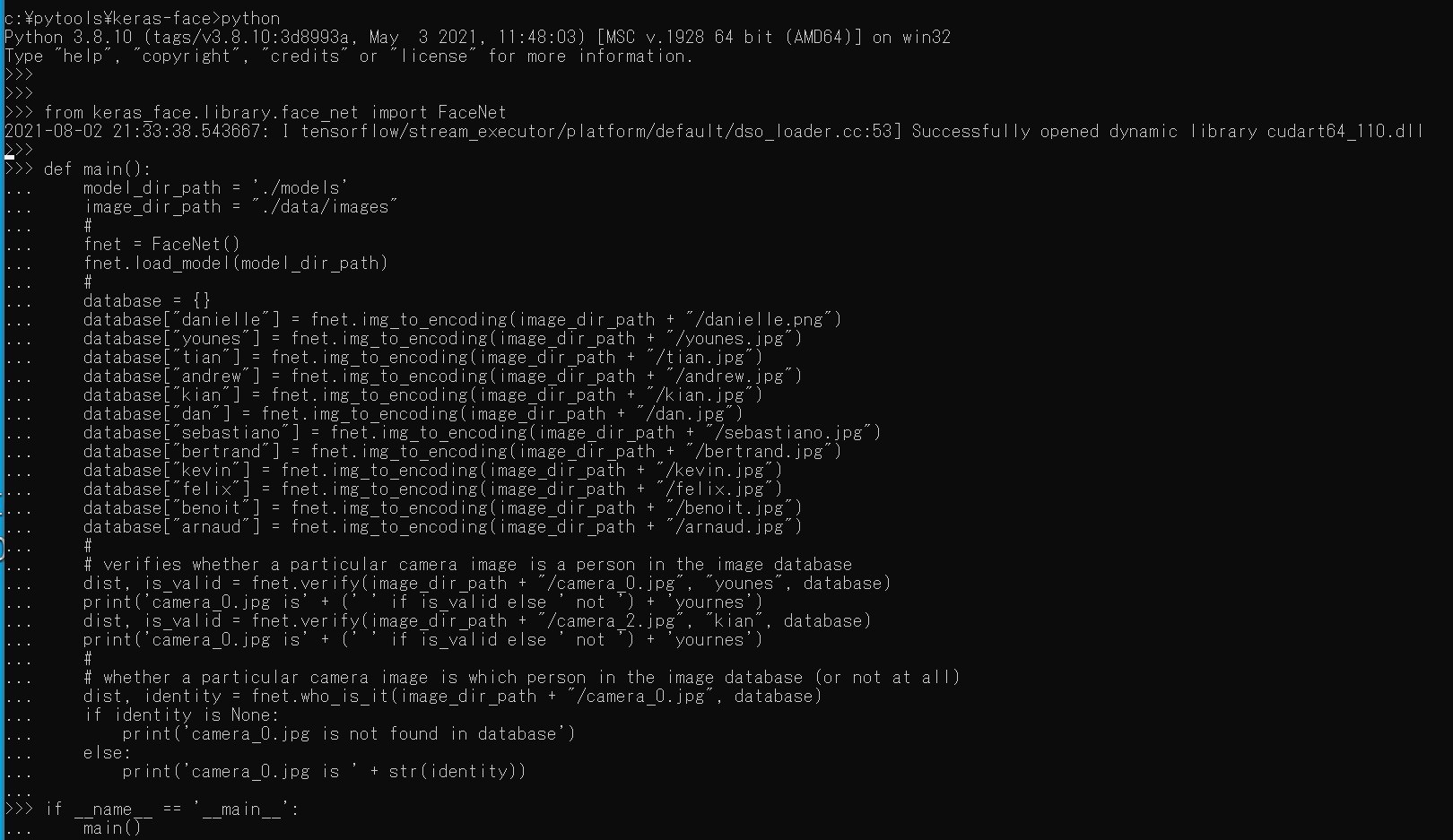

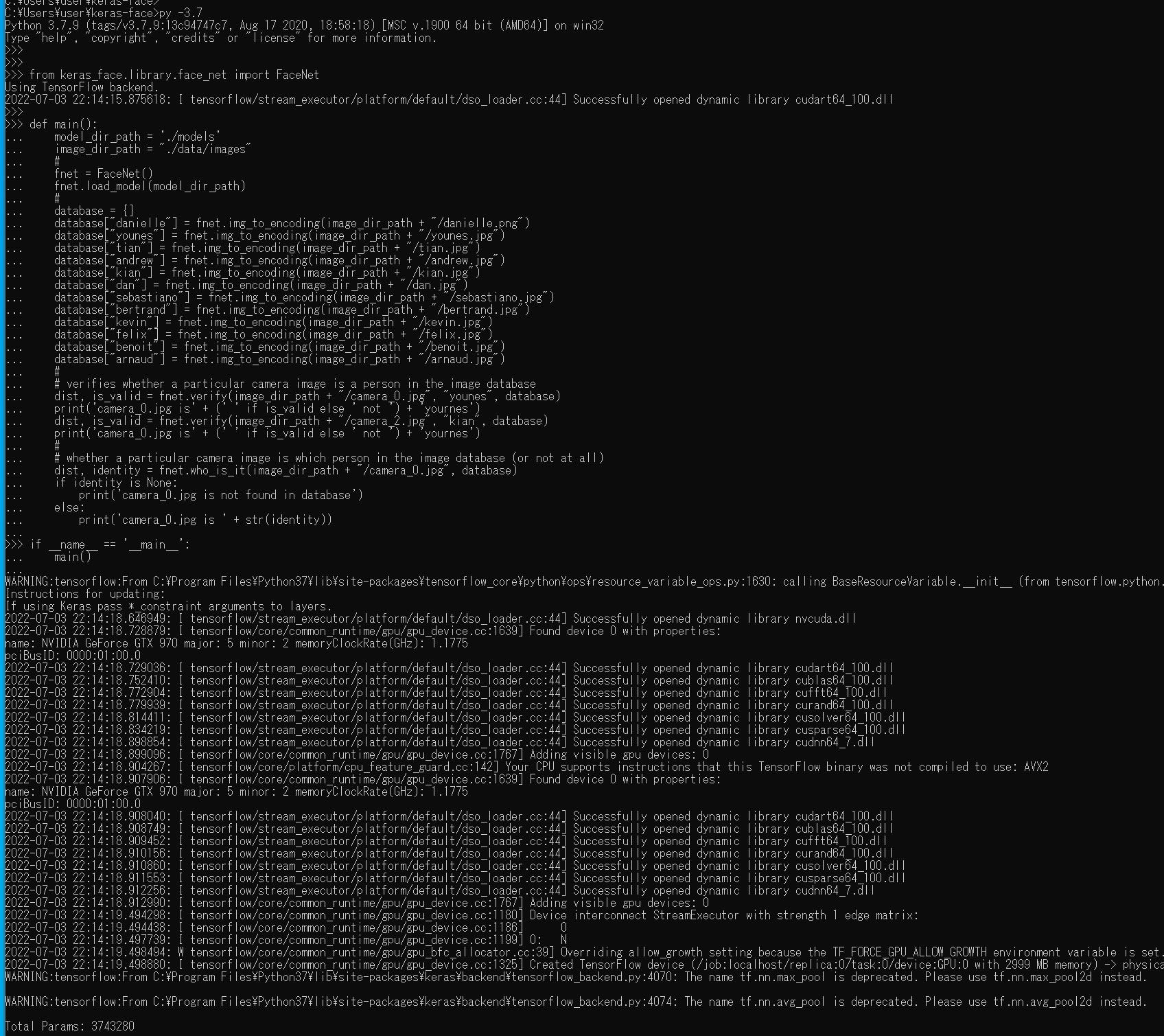

次のPython プログラムを実行する
from keras_face.library.face_net import FaceNet def main(): model_dir_path = './models' image_dir_path = "./data/images" # fnet = FaceNet() fnet.load_model(model_dir_path) # database = {} database["danielle"] = fnet.img_to_encoding(image_dir_path + "/danielle.png") database["younes"] = fnet.img_to_encoding(image_dir_path + "/younes.jpg") database["tian"] = fnet.img_to_encoding(image_dir_path + "/tian.jpg") database["andrew"] = fnet.img_to_encoding(image_dir_path + "/andrew.jpg") database["kian"] = fnet.img_to_encoding(image_dir_path + "/kian.jpg") database["dan"] = fnet.img_to_encoding(image_dir_path + "/dan.jpg") database["sebastiano"] = fnet.img_to_encoding(image_dir_path + "/sebastiano.jpg") database["bertrand"] = fnet.img_to_encoding(image_dir_path + "/bertrand.jpg") database["kevin"] = fnet.img_to_encoding(image_dir_path + "/kevin.jpg") database["felix"] = fnet.img_to_encoding(image_dir_path + "/felix.jpg") database["benoit"] = fnet.img_to_encoding(image_dir_path + "/benoit.jpg") database["arnaud"] = fnet.img_to_encoding(image_dir_path + "/arnaud.jpg") # # verifies whether a particular camera image is a person in the image database dist, is_valid = fnet.verify(image_dir_path + "/camera_0.jpg", "younes", database) print('camera_0.jpg is' + (' ' if is_valid else ' not ') + 'yournes') dist, is_valid = fnet.verify(image_dir_path + "/camera_2.jpg", "kian", database) print('camera_0.jpg is' + (' ' if is_valid else ' not ') + 'yournes') # # whether a particular camera image is which person in the image database (or not at all) dist, identity = fnet.who_is_it(image_dir_path + "/camera_0.jpg", database) if identity is None: print('camera_0.jpg is not found in database') else: print('camera_0.jpg is ' + str(identity)) if __name__ == '__main__': main()

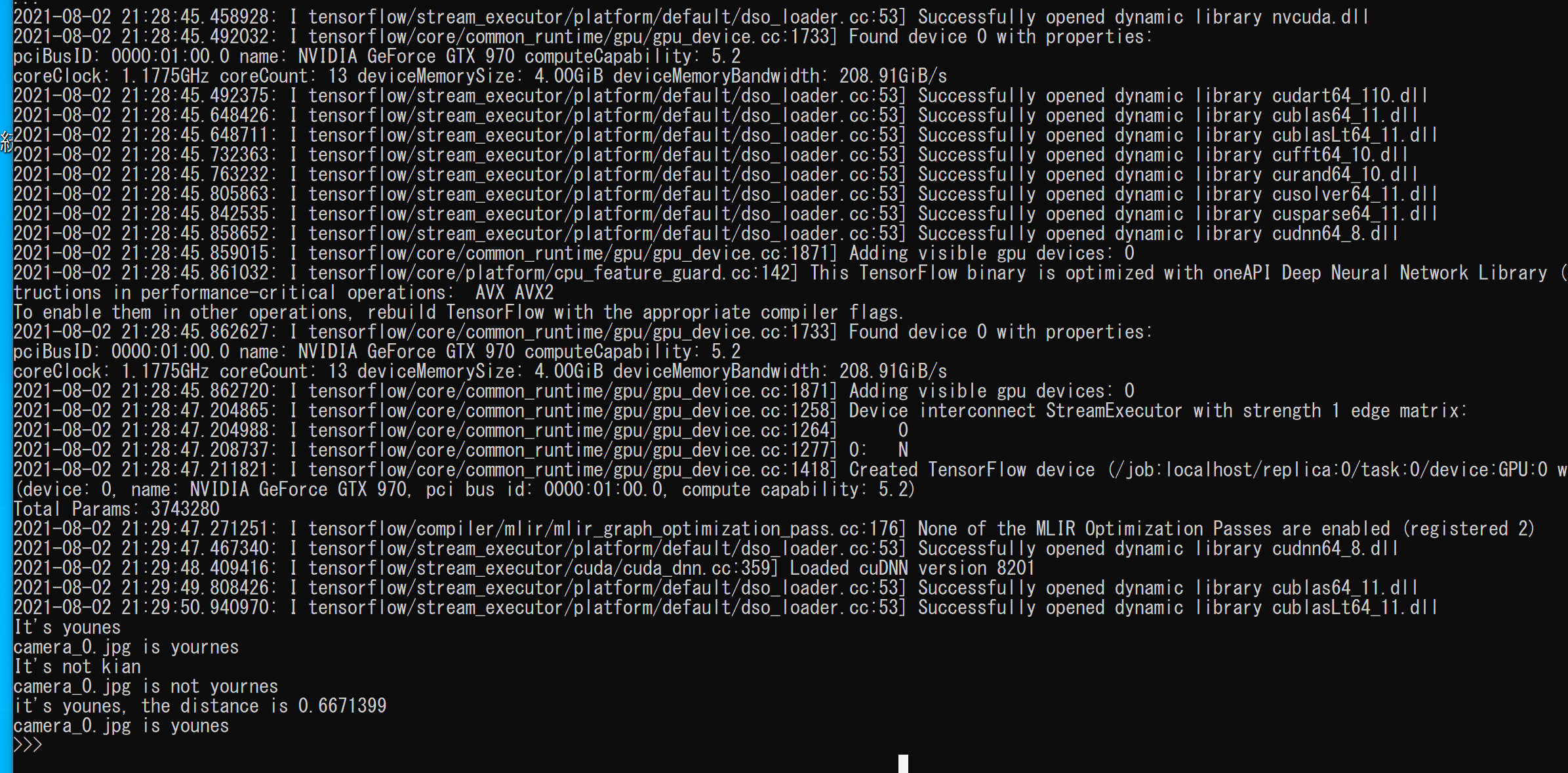

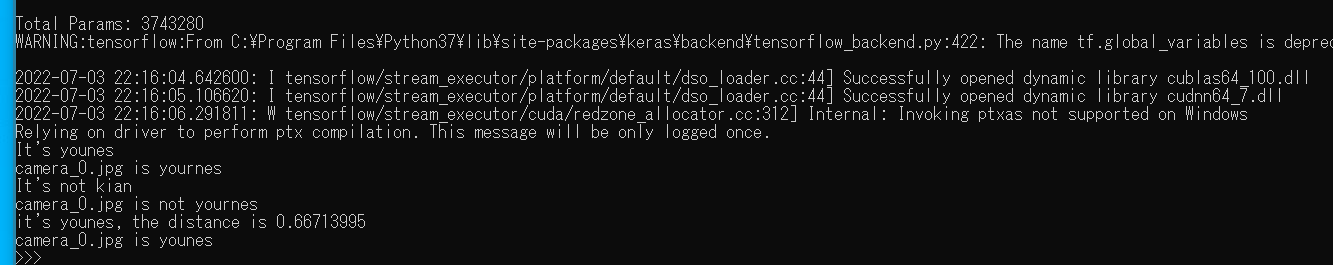

- 実行結果を確認する
顔認識の結果が表示される
- デモプログラム VGG16 + Siamese の学習 を実行
このプログラムは、VGG16 + Siamese の学習を行うプログラムである。
* 1つ前のプログラムは、DeepFace 法(つまり別もの)
データのダウンロードと、学習を行うので時間がかかる
次のPython プログラムを実行する
py -3.7 を使用.
from keras_face.library.siamese import SiameseFaceNet def main(): fnet = SiameseFaceNet() fnet.vgg16_include_top = True # default is False # model_dir_path = './models' image_dir_path = "./data/images" # database = dict() database["danielle"] = [fnet.img_to_encoding(image_dir_path + "/danielle.png")] database["younes"] = [fnet.img_to_encoding(image_dir_path + "/younes.jpg")] database["tian"] = [fnet.img_to_encoding(image_dir_path + "/tian.jpg")] database["andrew"] = [fnet.img_to_encoding(image_dir_path + "/andrew.jpg")] database["kian"] = [fnet.img_to_encoding(image_dir_path + "/kian.jpg")] database["dan"] = [fnet.img_to_encoding(image_dir_path + "/dan.jpg")] database["sebastiano"] = [fnet.img_to_encoding(image_dir_path + "/sebastiano.jpg")] database["bertrand"] = [fnet.img_to_encoding(image_dir_path + "/bertrand.jpg")] database["kevin"] = [fnet.img_to_encoding(image_dir_path + "/kevin.jpg")] database["felix"] = [fnet.img_to_encoding(image_dir_path + "/felix.jpg")] database["benoit"] = [fnet.img_to_encoding(image_dir_path + "/benoit.jpg")] database["arnaud"] = [fnet.img_to_encoding(image_dir_path + "/arnaud.jpg")] # fnet.fit(database=database, model_dir_path=model_dir_path) if __name__ == '__main__': main()
- 実行結果を確認する
- デモプログラム VGG16 + Siamese による顔認識 を実行
このプログラムは、VGG16 + Siamese の学習の結果を使うもの
このプログラムも camera_0.jpg が誰なのかを顔認識する。

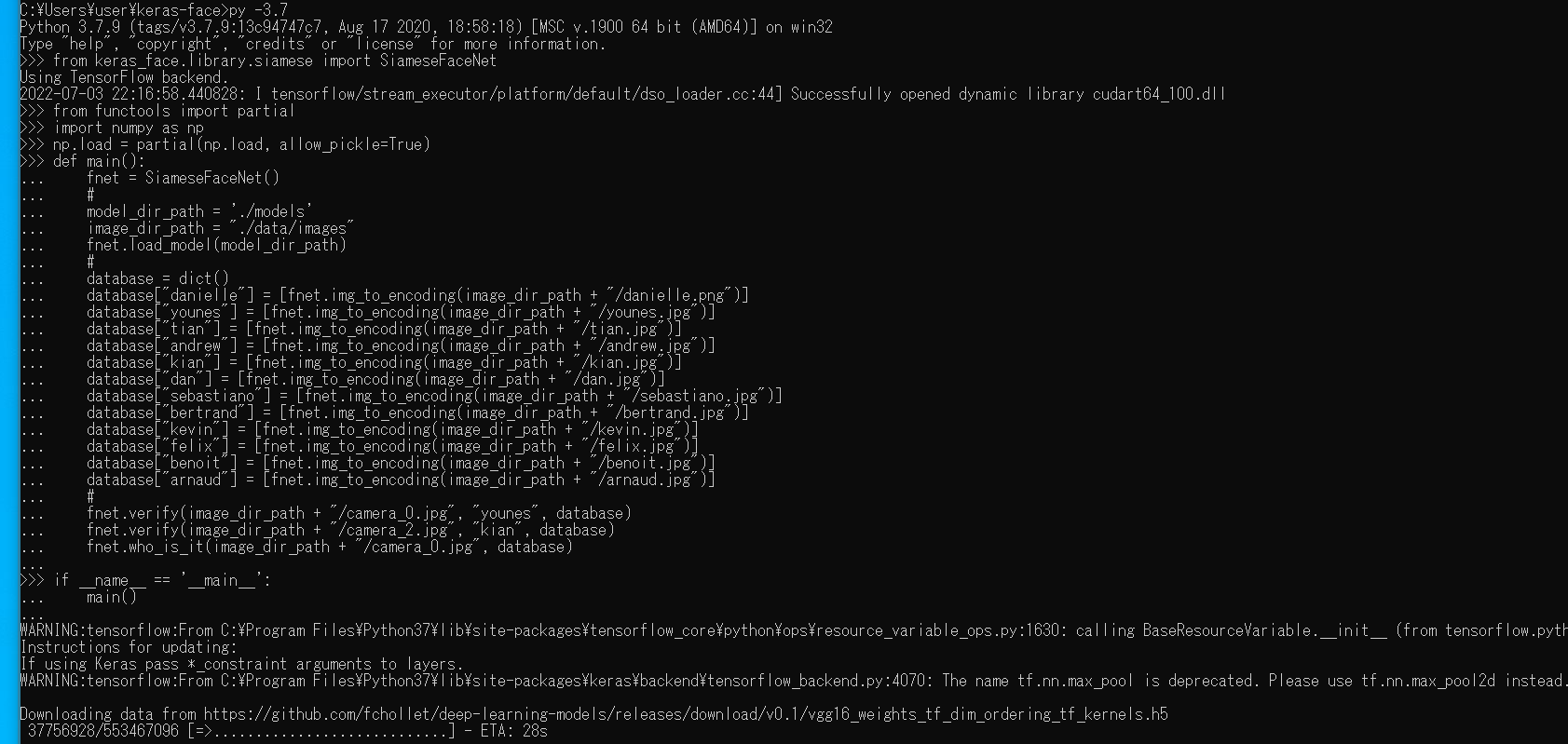

次のPython プログラムを実行する
from keras_face.library.siamese import SiameseFaceNet from functools import partial import numpy as np np.load = partial(np.load, allow_pickle=True) def main(): fnet = SiameseFaceNet() # model_dir_path = './models' image_dir_path = "./data/images" fnet.load_model(model_dir_path) # database = dict() database["danielle"] = [fnet.img_to_encoding(image_dir_path + "/danielle.png")] database["younes"] = [fnet.img_to_encoding(image_dir_path + "/younes.jpg")] database["tian"] = [fnet.img_to_encoding(image_dir_path + "/tian.jpg")] database["andrew"] = [fnet.img_to_encoding(image_dir_path + "/andrew.jpg")] database["kian"] = [fnet.img_to_encoding(image_dir_path + "/kian.jpg")] database["dan"] = [fnet.img_to_encoding(image_dir_path + "/dan.jpg")] database["sebastiano"] = [fnet.img_to_encoding(image_dir_path + "/sebastiano.jpg")] database["bertrand"] = [fnet.img_to_encoding(image_dir_path + "/bertrand.jpg")] database["kevin"] = [fnet.img_to_encoding(image_dir_path + "/kevin.jpg")] database["felix"] = [fnet.img_to_encoding(image_dir_path + "/felix.jpg")] database["benoit"] = [fnet.img_to_encoding(image_dir_path + "/benoit.jpg")] database["arnaud"] = [fnet.img_to_encoding(image_dir_path + "/arnaud.jpg")] # fnet.verify(image_dir_path + "/camera_0.jpg", "younes", database) fnet.verify(image_dir_path + "/camera_2.jpg", "kian", database) fnet.who_is_it(image_dir_path + "/camera_0.jpg", database) if __name__ == '__main__': main()

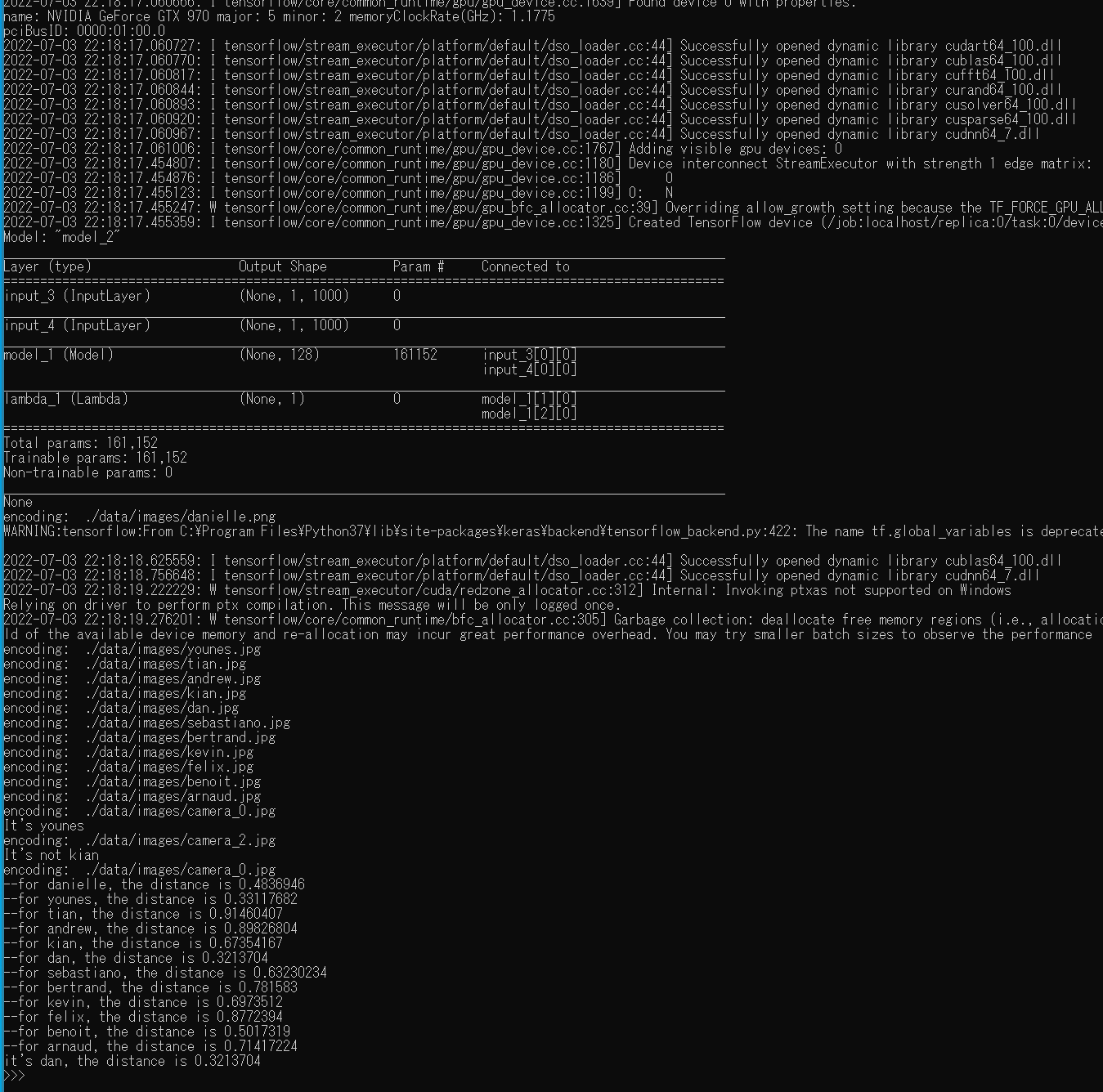

- 実行結果を確認する
顔認識の結果が表示される
