Ruby で SQLite 3 のテーブル定義を扱う
Ruby 言語を使い, 組み込み型のリレーショナルデータベース管理システム SQLite 3 のテーブル定義を扱ってみます. このページでは次のことを行う.
- テーブル定義を行う SQL プログラムの生成
Ruby のデータ構造に,属性名,データ型,列制約,テーブル制約を格納しておくと,それらからテーブル定義を行う SQL プログラムを生成する
- SQLite 3 のテーブル定義の解析の簡単なもの

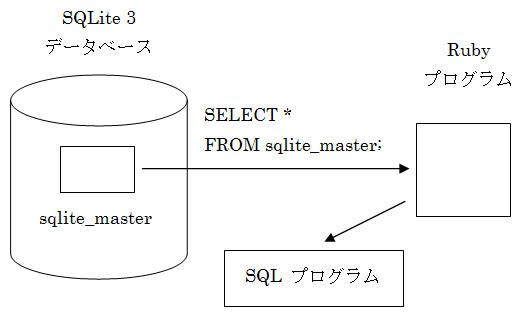

SQLite 3の sqlite_master テーブルには TEMPORARY TABLE 以外のテーブルのテーブル定義が格納されている. このテーブル定義を読み取り,解析して, 解析の結果 column_def と table_constraints を配列に入れる.但し,SQLite 3の SQL テーブル定義文の一部の文法のみに対応.

SQLite 3の SQL に関する詳しい説明は:
前準備
必要となるソフトウェア
次のソフトウェアのインストールが済んでいること.「Ruby プログラミング」の Web ページを参考にしてください.
あらかじめ決めておく事項
使用する SQLite 3のデータベースのデータベースファイル名を決めておくこと. このページでは,次のように書く.Ruby の流儀で,Windows の場合は「\」のことを「\\」と書く.
- データベースファイル名:
C:/SQLite/testdb (Windows の場合) /var/SQLite/testdb (Linux の場合)
データベースファイルは,自由に決めてよいが,半角文字(つまり英字と英記号)を使い,スペースを含まないこと,
SQLite 3 のテーブル定義を扱うプログラム
ここで扱うテーブル定義
ここに載せるプログラムは,リレーショナルデータベースのテーブル定義を扱うが, SQLite 3の SQL のテーブル定義文の全機能を扱うわけではない. 下記に、ここに載せるプログラムが扱うテーブル定義文を説明する
- SQLite 3のデータ型
データ型の種類は,データベース管理システムごとに違う. SQLite では,扱えるデータ型として次の 5 種類がある.詳しい説明は https://www.sqlite.org/datatype3.html にある.
* SQLite 3のデータ型と,SQL の標準が定めるデータ型の定義は異なる.大胆にまとめると,SQLite 3のデータ型の方がより大きな範囲のデータを扱える.
- NULL: 空値 (a NULL value)
- INTEGER: 符号付きの整数 (signed integer) ※ SQLite では BIGINT と書いても INTEGER と書いても同じ「8バイトの整数」という意味
- REAL: 浮動小数点値 (floating point value)
- TEXT: 文字列 (text string) ※ SQLite では DATETIME と書いても TEXT と書いても同じ「可変長文字列」の意味.
- BLOB: バイナリ・ラージ・オブジェクト (Binary Large Object). 入力がそのままの形で格納される (stored exactly as it was input). * SQLite では LARGEBLOB と書いても BLOB と書いても同じ「長大なバイナリ・ラージ・オブジェクト」という意味
- SQL テーブル定義文 (create-table-statement)
create table <table-name> (<column-def> の並び, [<table-constraint> の並び]);
* 「 <table-constraint> の並び」は省略可能であることに注意
- 列定義 (column-def)
<column-name> <type-name> [<column constraint> の並び]
* 「<column constraint>」は省略可能であることに注意
- 列制約 (column-constraint) の例
列定義 (column-def) の中に含める一貫性制約やデフォルト値の指定
- PRIMARY KEY ・・・ 主キー制約
- not null ・・・ 非空制約
- UNIQUE ・・・ 一意制約
- CHECK (<expression>) ・・・ 更新時にチェックされる式 ( expression) ※ SQLite 固有の機能
- REFERENCES <foreign-table> (<column-name>, ...) ・・・ 参照整合性制約
- DEFAULT (<expression>) ・・・ デフォルト値 (default value) の指定
- autoincrement ・・・ 自動インクリメント (auto increment)
- テーブル制約 (table-constraint) の例
create-table-statement の中に含める一貫性制約のうち複数の属性に関わるものは table-constraint の形で記述することになる.
- PRIMARY KEY(<indexed-column>, ...)
- UNIQUE(<indexed-column>, ...)
- CHECK(<expression>)
- FOREIGN KEY ...
ソースコード
#! ruby -Ks # coding: windows-31j require 'pp' require 'rubygems' require 'sqlite3' def table_constaint? (s) # 文字列の先頭に PRIMARY KEY, UNIQUE, CHECK, FOREIGN KEY がくる場合 # true. 但し,大文字,小文字を区別しない ss = s.strip.downcase if /^primary[\s]+key/ =~ ss return true elsif /^unique/ =~ ss return true elsif /^check/ =~ ss return true elsif /^foreign[\s]+key/ =~ ss return true else return false end end # # # def parse_sqlite3_create_table_sql_stmt (s) # SQLite 3の create table SQL 文を解析し,table_constraints と column_defs を取り出す # body は s の本体.但し,\t, \r \n, \f は半角空白文字に置き換える # 例えば,a = "hoge => create table HOGE (id integer, x REAL);" のとき # body = 例えば "hoge => id integer, x REAL" # つまり、括弧「()」の中身を取り出す s.gsub(/\t|\r|\n|\f/,' ').match /([^\(]+)\((.+)\)(.)*/ body = $2 # "id char(20,20), name char(10,10)" のような場合,単純に「,」で区切るとうまくいかない.入れ子の中の場合には、「前」に連結する lines = Array.new depth = 0 body.split(/,/).each do |a| if ( depth == 0 ) lines.push(a) else lines.last.concat(',').concat(a) end # '( x * ( y + z ) )'.count('(') => 2 depth += a.count('(') - a.count(')') end # SQL の create table の本体が lines(配列)に入ったので, # それを使って table_constraints と column_defs を取り出す table_constraints = Array.new column_defs = Array.new lines.each do |a| # SQL の create table 本体の各行についての処理 if ( table_constaint? a) table_constraints.push(a) else tokens = a.strip.split(nil) # 先頭 column_name = tokens.shift # 2 つめ以降 type_name_and_column_constraints = tokens.join(' ') column_defs.push(column_name => type_name_and_column_constraints) end end return column_defs, table_constraints end # # # def has_elem(array) # nil でも empty でもなければ true if array.nil? return false elsif array.empty? return false else return true end end # # # # テーブル定義に関するデータを格納するためのクラス. # @table_name がテーブル名 # @column_defs が属性(column_name とその型と制約を格納したハッシュテーブル) # @table_constraints は制約(配列) # @sqlstmt は create table の SQL 文 class TableDef attr_accessor :table_name, :column_defs, :table_constraints, :sqlstmt def initialize(table_name) @table_name = table_name @column_defs = nil @table_constraints = nil @sqlstmt = nil end # @sqlstmt から @column_defs, @table_constraints を生成 def parse_SQL_stmt @column_defs, @table_constraints = parse_sqlite3_create_table_sql_stmt @sqlstmt end # @table_name, @column_defs, @table_constraints から @sqlstmt を生成 def generate_SQL_stmt out = "create table " + @table_name + " (\n" # column_defs 部分 j = 0 if !column_defs.nil? column_defs.each do |key, value| out.concat " #{key} \t" out.concat value if ( ( j < (@column_defs.size - 1) ) || has_elem(@table_constraints) ) # 最後の属性でないときは「,」で継続 out.concat ",\n" end j += 1 end end # table_constraints 部分 j = 0 if !table_constraints.nil? table_constraints.each do |key, value| out.concat " #{key} \t" out.concat value if ( j < (@table_constraints - 1) ) # 最後の属性でないときは「,」で継続 out.concat ",\n" end j += 1 end end out.concat" );\n" @sqlstmt = out return end end # # # def read_sqlite_master( dbname ) # SQL で書かれたテーブル定義 SQLite 3の sqlite_master から読み込む # TableDef オブジェクトの配列を返す # (各TableDef オブジェクトの @table_name, @column_defs, @table_constraints, @sqlstmt は適切に設定された状態にする) # データベースオープン Dir.chdir( File.dirname( File.expand_path( dbname ) ) ) db = SQLite 3::Database.new( dbname ) # SQL による問い合わせ sql = "SELECT * FROM sqlite_master;" tables = Array.new # db.execute(...) do |row| ... end は,結果が複数の行になるときの決まり文句 db.execute(sql) do |row| # row の 0 列目 : {"table", "index"} のいずれか # row の 2 列目 : tbl_name # row の 4 列目 : SQL で書かれたテーブル定義 if ( row[0] == "table" ) # row[2] は例えば "hoge" # row[4] は例えば "create table HOGE (id integer, x REAL);" t = TableDef.new row[2] t.sqlstmt = row[4] t.parse_SQL_stmt tables.push(t) end end # データベースクローズ db.close return tables end # SQLite 3 のデータベースファイル名を DBNAME に設定してください. # Windows の場合. 「C:」のようにドライブ名を付ける # DBNAME = "C:/SQLite/testdb" # Linux の場合 DBNAME = "/var/SQLite/testdb" # 使用例(1) # SQLite 3の sqlite_master を読み込んで解析 pp read_sqlite_master(DBNAME) print "-------------------------------\n" # 使用例(2) # テーブル定義に関するデータを格納し,create table の SQL 文を生成 products_def = TableDef.new "products" products_def.column_defs = Hash[ "id", "INTEGER PRIMARY KEY autoincrement not null", "product_name", "BLOB UNIQUE not null", "type", "TEXT not null", "cost", "REAL", "created_at", "DATETIME not null", "updated_at", "DATETIME not null"] products_def.generate_SQL_stmt pp products_def print "-------------------------------\n"

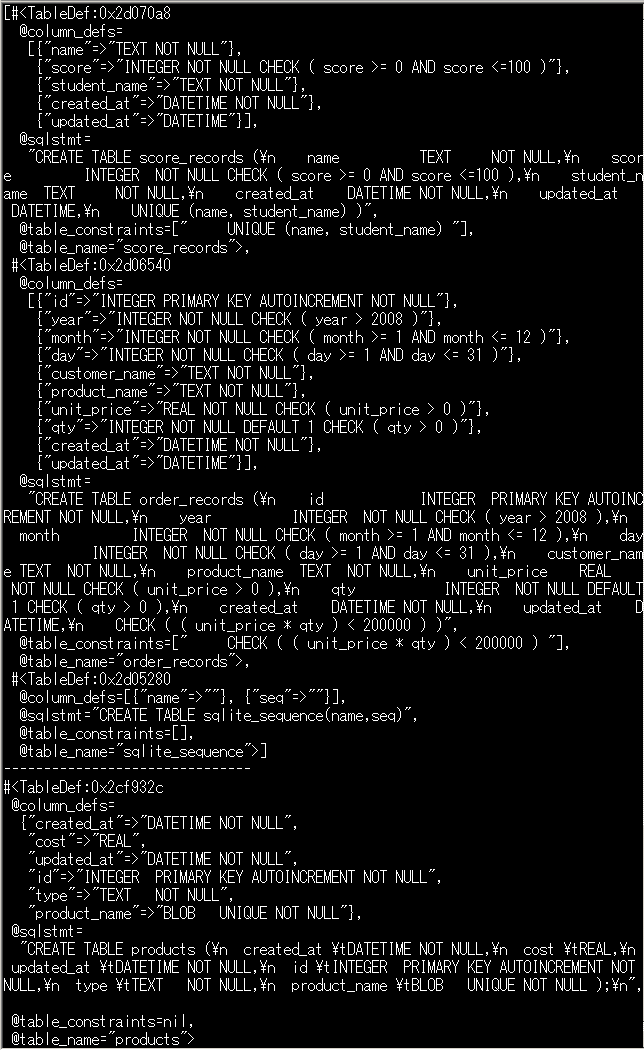

【実行結果の例】
