Ply 形式のファイルを STL 形式に変換

コンパイル手順

gcc -o a.out a.cc -lm

使用法

1. Ply ファイルの準備

   60 Excellent Free 3D Model Websites http://www.hongkiat.com/blog/60-excellent-free-3d-model-websites/

2. meshlab を用いて前処理
   1. meshlab を起動．
   2. Import Mesh でファイルを読み込む
   3. Export Mesh As で ply 形式を選ぶ．normal にチェックする．binary のチェックを外す．

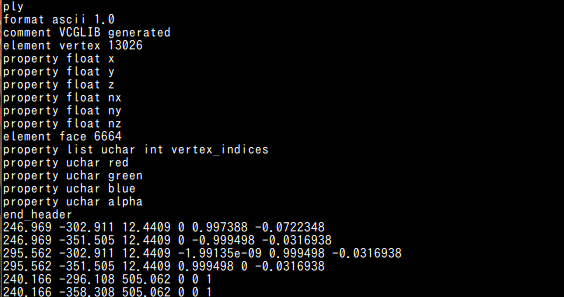

   次のような形式に変換



3. その後、下のプログラムを利用．


   ソースコード

   #include<stdio.h>
   #include<stdlib.h>
   #include<string.h>
   #include<math.h>

   static void Error(char* msg)
   {
   	fputs(msg,stderr); fputc('\n',stderr); exit(1);
   }

   #define STR_LEN	256

   static char	line[STR_LEN];

   static void	Scan(FILE* file)
   {
   	char	str[STR_LEN];

   	for (;;) {
   	    if (fgets(line,STR_LEN,file)==NULL)
   		Error("unexpected end of file.");

   	    if (line[strlen(line)-1]!='\n') Error("missing end of line.");

   	    if (sscanf(line,"%s",str)==1 && strcmp(str,"comment")) return;
   	}
   }

   static int	CheckElement(FILE* file, char* element)
   {
   	char	str[3][STR_LEN];
   	int	number;

   	Scan(file);
   	fprintf(stderr, "%s\n", line);
   	if (sscanf(line,"%s %s %s",str[0],str[1],str[2])!=3 ||
   	    strcmp(str[0],"element") ||
   	    strcmp(str[1],element) ||
   	    sscanf(str[2],"%d",&number)!=1 ||
   	    number<=0) {
   	  fprintf(stderr,"bad element specification for %s (number = %d) \n",element, number);
   	    exit(1);
   	}
   	return number;
   }

   static void	CheckProperty(FILE* file, char* type, char* name, char* element)
   {
   	char	str[3][STR_LEN];

   	Scan(file);
   	if (sscanf(line,"%s %s %s",str[0],str[1],str[2])!=3 ||
   	    strcmp(str[0],"property") ||
   	    strcmp(str[1],type) ||
   	    strcmp(str[2],name)) {
   	  fprintf(stderr,"bad property specification for %s, (line = %s)\n",element, line);
   	    exit(1);
   	}
   }

   #define MA(noe,ptr)	malloc((noe)*sizeof(*(ptr)))

   typedef struct _vertex {
     double x;
     double y;
     double z;
     double nx;
     double ny;
     double nz;
     int r;
     int g;
     int b;
     int alpha;
   } vertex;

   typedef struct _face {
     int v0;
     int v1;
     int v2;
   } face;

   int	main(int argc, char** argv)
   {
   	FILE	*zcp,*stl;
   	char	str[10][STR_LEN];
   	int vertices, faces;
   	//	int	vertices,faces,face,vertex,idx,R,G,B;
   	//	double	x10,x20,y10,y20,z10,z20,nx,ny,nz,n;
   	//	short	flag;

   	if (argc!=3) Error("usage : zcp_stl ZCP STL");

   	if (argv[1][0]=='-')
   	    zcp=stdin;
   	else
   	    if ((zcp=fopen(argv[1],"rb"))==NULL) Error("file not found.");

   	if (fgetc(zcp)!='p' ||
   	    fgetc(zcp)!='l' ||
   	    fgetc(zcp)!='y') Error("bad magic number.");

   	Scan(zcp);
   	if (sscanf(line,"%s %s %s",str[0],str[1],str[2])!=3 ||
   	    strcmp(str[0],"format") ||
   	    //	    strcmp(str[1],"binary_little_endian") ||
   	    strcmp(str[1],"ascii") ||
   	    strcmp(str[2],"1.0"))
   	    Error("bad format specification.");

   	vertices=CheckElement(zcp,"vertex");

   	CheckProperty(zcp,"float","x","vertex");
   	CheckProperty(zcp,"float","y","vertex");
   	CheckProperty(zcp,"float","z","vertex");

   	CheckProperty(zcp,"float","nx","vertex");
   	CheckProperty(zcp,"float","ny","vertex");
   	CheckProperty(zcp,"float","nz","vertex");

   	faces=CheckElement(zcp,"face");

   	Scan(zcp);
   	if (sscanf(line,"%s %s %s %s %s",
   			str[0],str[1],str[2],str[3],str[4])!=5 ||
   	    strcmp(str[0],"property") ||
   	    strcmp(str[1],"list") ||
   	    strcmp(str[2],"uchar") ||
   	    strcmp(str[3],"int") ||
   	    strcmp(str[4],"vertex_indices"))
   	    Error("bad vertex index specification for face.");

   	CheckProperty(zcp,"uchar","red","vertex");
   	CheckProperty(zcp,"uchar","green","vertex");
   	CheckProperty(zcp,"uchar","blue","vertex");
   	CheckProperty(zcp,"uchar","alpha","vertex");

   	Scan(zcp);
   	if (sscanf(line,"%s",str[0])!=1 ||
   	    strcmp(str[0],"end_header")) Error("missing end of header.");

   	vertex *XYZ = (vertex *)malloc(sizeof(vertex) * vertices);

   	int i;
   	for (i=0; i<vertices; i++) {
   	  Scan(zcp);
   	  sscanf(line,"%s %s %s %s %s", str[0], str[1], str[2], str[3], str[4], str[5], str[6], str[7], str[8], str[9] );
   	  XYZ[i].x = atof(str[0]);
   	  XYZ[i].y = atof(str[1]);
   	  XYZ[i].z = atof(str[2]);

   	  XYZ[i].nx = atof(str[3]);
   	  XYZ[i].ny = atof(str[4]);
   	  XYZ[i].nz = atof(str[5]);

   	  XYZ[i].r = atoi(str[6]);
   	  XYZ[i].g = atoi(str[7]);
   	  XYZ[i].b = atoi(str[8]);
   	  XYZ[i].alpha = atoi(str[9]);

   	}

   	face *F = (face *)malloc(sizeof(face) * faces);

   	for (i=0; i<faces; i++) {
   	  Scan(zcp);
   	  sscanf(line,"%s %s %s %s", str[0], str[1], str[2], str[3]);
   	  F[i].v0 = atoi(str[1]);
   	  F[i].v1 = atoi(str[2]);
   	  F[i].v2 = atoi(str[3]);
   	}
   	// for debug
   	// printf("%f %f %f\n", XYZ[0].x, XYZ[0].y, XYZ[0].z );
   	// printf("%d %d %d\n", F[0].v0, F[0].v1, F[0].v2 );

   	if (argv[2][0]=='-')
   	    stl=stdout;
   	else
   	    if ((stl=fopen(argv[2],"w"))==NULL) Error("file not stored.");

   	// header
   	fputs("solid \n", stl);

   	for (i=0; i<faces; i++) {
   	  double x10 = XYZ[F[i].v1].x  -  XYZ[F[i].v0].x;
   	  double x20 = XYZ[F[i].v2].x  -  XYZ[F[i].v0].x;
   	  double y10 = XYZ[F[i].v1].y  -  XYZ[F[i].v0].y;
   	  double y20 = XYZ[F[i].v2].y  -  XYZ[F[i].v0].y;
   	  double z10 = XYZ[F[i].v1].z  -  XYZ[F[i].v0].z;
   	  double z20 = XYZ[F[i].v2].z  -  XYZ[F[i].v0].z;
   	  double nx=y10*z20-z10*y20;
   	  double ny=z10*x20-x10*z20;
   	  double nz=x10*y20-y10*x20;
   	  double n=sqrt(nx*nx+ny*ny+nz*nz);
   	  fprintf(stl, "facet normal %f %f %f\n", nx/n, ny/n, nz/n );

   	  fprintf(stl, "outer loop\n");

   	  fprintf(stl, "vertex %f %f %f %d %d %d\n", XYZ[F[i].v0].x, XYZ[F[i].v0].y, XYZ[F[i].v0].z,  XYZ[F[i].v0].r, XYZ[F[i].v0].g, XYZ[F[i].v0].b );
   	  fprintf(stl, "vertex %f %f %f %d %d %d\n", XYZ[F[i].v1].x, XYZ[F[i].v1].y, XYZ[F[i].v1].z,  XYZ[F[i].v1].r, XYZ[F[i].v1].g, XYZ[F[i].v1].b );
   	  fprintf(stl, "vertex %f %f %f %d %d %d\n", XYZ[F[i].v2].x, XYZ[F[i].v2].y, XYZ[F[i].v2].z,  XYZ[F[i].v2].r, XYZ[F[i].v2].g, XYZ[F[i].v2].b );

   	  fprintf(stl, "endloop\n");

   	  fprintf(stl, "endfacet\n");
   	}

   	// end
   	fputs("endsolid \n", stl);
   	fclose(stl);

   	//
   	if ( XYZ != NULL ) {
   	  free(XYZ);
   	}
   	if ( F != NULL ) {
   	  free(F);
   	}

   	return 0;
   }
