画像データの拡張,CIFAR 10 の画像分類を行う畳み込みニューラルネットワークの学習(tf.image を用いて増強,MobileNetV2,TensorFlow データセットのCIFAR-10 データセットを使用)(Google Colaboratroy へのリンク有り)
CIFAR-10 データセット(
教師データとして用いる画像データのデータ拡張を行う.増量では,TensorFlow の機能を使い,画像を縦横にずらす,コントラストを変化させることを行う.
前提として,このページの手順では,増量後の画像データがメモリに入り切る分量であるとしている.
TensorFlow データセットのCIFAR-10 データセットを使用する.
CNN としては,次のものを使用する.
【目次】
【サイト内の関連ページ】
【関連する外部ページ】
1. Google Colaboratory での実行
Google Colaboratory のページ:
次のリンクをクリックすると,Google Colaboratory のノートブックが開く. そして,Google アカウントでログインすると,Google Colaboratory のノートブック内のコード等を編集したり再実行したりができる.編集した場合でも,他の人に影響が出たりということはない.そして,編集後のものを,各自の Google ドライブ内に保存することもできる.
https://colab.research.google.com/drive/1osVlD5wpv-pFMrIt2WgXWbTB8t5fKu9f?usp=sharing
2. Windows での実行
Python のインストール(Windows 上)
【サイト内の関連ページ】
- Windows での Python 3.10,関連パッケージ,Python 開発環境のインストール(winget を使用しないインストール): 別ページ »で説明
- Windows での Anaconda3 のインストール: 別ページ »で説明
- Python のまとめ: 別ページ »にまとめている.
【関連する外部ページ】 Python の公式ページ: https://www.python.org/
TensorFlow,Keras のインストール
Windows での TensorFlow,Keras のインストール: 別ページ »で説明
(このページで,Build Tools for Visual Studio 2022,NVIDIA ドライバ, NVIDIA CUDA ツールキット, NVIDIA cuDNNのインストールも説明している.)
Graphviz のインストール
Windows での Graphviz のインストール: 別ページ »で説明
numpy,matplotlib, seaborn, scikit-learn, pandas, pydot のインストール
- Windows で,コマンドプロンプトを管理者権限で起動する(例:Windowsキーを押し,「cmd」と入力し,「管理者として実行」を選択)
次のコマンドを実行する.
python -m pip install -U numpy matplotlib seaborn scikit-learn pandas pydot
3. CIFAR-10 データセットのロード
- パッケージのインポート,TensorFlow のバージョン確認など
from __future__ import absolute_import, division, print_function, unicode_literals import tensorflow as tf from tensorflow.keras import backend as K K.clear_session() import numpy as np import tensorflow_datasets as tfds from tensorflow.keras.preprocessing import image %matplotlib inline import matplotlib.pyplot as plt import warnings warnings.filterwarnings('ignore') # Suppress Matplotlib warnings
- CIFAR-10 データセットのロード
tensorflow_datasets の loadで, 「batch_size = -1」を指定して,一括読み込みを行っている.
cifar10, cifar10_info = tfds.load('cifar10', with_info = True, shuffle_files=True, as_supervised=True, batch_size = -1)
4. CIFAR-10 データセットの確認
- データセットの中の画像を表示
MatplotLib を用いて,0 番目の画像を表示する
%matplotlib inline import matplotlib.pyplot as plt import warnings warnings.filterwarnings('ignore') # Suppress Matplotlib warnings NUM = 0 # NUM 番目の画像を表示 plt.imshow(cifar10['train'][0][NUM])
MatplotLib を用いて,複数の画像を並べて表示する.
def plot25(ds, start): plt.figure(figsize=(10,10)) for i in range(25): plt.subplot(5,5,i+1) plt.xticks([]) plt.yticks([]) plt.grid(False) image, label = ds[0][i + start], ds[1][i + start] plt.imshow(image) plt.xlabel(label.numpy()) plt.show() plot25(cifar10['train'], 0)
- データセットの情報を表示
print(cifar10_info) print(cifar10_info.features["label"].num_classes) print(cifar10_info.features["label"].names)
- cifar10['train'] と cifar10['test'] の形と次元を確認
cifar10['train']: サイズ 32 かける 32 の 50000枚のカラー画像,50000枚のカラー画像それぞれのラベル(0 から 9 のどれか)
cifar10['test']: サイズ 32 かける 32 の 10000枚のカラー画像,10000枚のカラー画像それぞれのラベル(0 から 9 のどれか)
print(cifar10['train'][0].shape) print(cifar10['train'][1].shape) print(cifar10['test'][0].shape) print(cifar10['test'][1].shape)
5. CIFAR-10 データセットの拡張
- データセットの生成
ds_train, ds_test = cifar10['train'], cifar10['test']
- ニューラルネットワークを使うために,データの前処理
値は,もともと int で 0 から 255 の範囲であるのを, float32 で 0 から 1 の範囲になるように前処理を行う.
ds_train = (ds_train[0].numpy().astype("float32") / 255., ds_train[1]) ds_test = (ds_test[0].numpy().astype("float32") / 255., ds_test[1])
- 画像データのデータ拡張を行ってみる
画像データのデータ拡張を行う. 画像データは,ds_train[0] にある. TensorFlow の機能を使い,画像を縦横にずらす,コントラストを変化させることを行う. ds_train[1] にはラベルのデータが入っているとする.
結果の入る augmented_ds_train はタップル.うち1つ目は,numpy の配列.2つ目は,要素が tf.Tensor の配列.

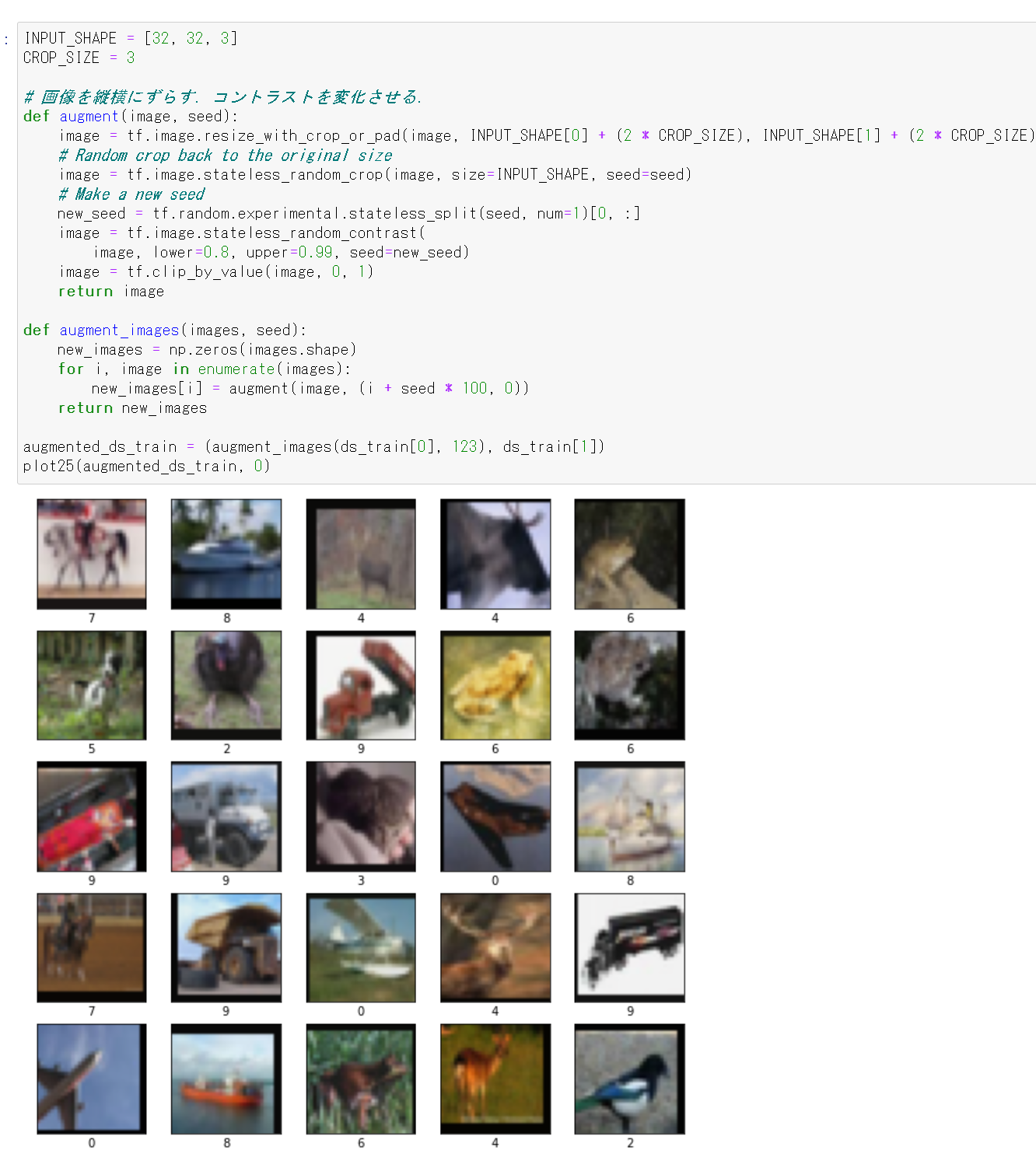

INPUT_SHAPE = [32, 32, 3] CROP_SIZE = 3 # 画像を縦横にずらす.コントラストを変化させる. def augment(image, seed): image = tf.image.resize_with_crop_or_pad(image, INPUT_SHAPE[0] + (2 * CROP_SIZE), INPUT_SHAPE[1] + (2 * CROP_SIZE)) # Random crop back to the original size image = tf.image.stateless_random_crop(image, size=INPUT_SHAPE, seed=seed) # Make a new seed new_seed = tf.random.experimental.stateless_split(seed, num=1)[0, :] image = tf.image.stateless_random_contrast( image, lower=0.8, upper=0.99, seed=new_seed) image = tf.clip_by_value(image, 0, 1) return image def augment_images(images, seed): new_images = np.zeros(images.shape) for i, image in enumerate(images): new_images[i] = augment(image, (i + seed * 100, 0)) return new_images augmented_ds_train = (augment_images(ds_train[0], 123), ds_train[1]) plot25(augmented_ds_train, 0)
- 増量できたことの確認
print(augmented_ds_train[0].shape)
- 今度は,画像データのデータ拡張を行いながら,画像データを 5倍に増やす.
ここで増やした画像データは,あとで使用する

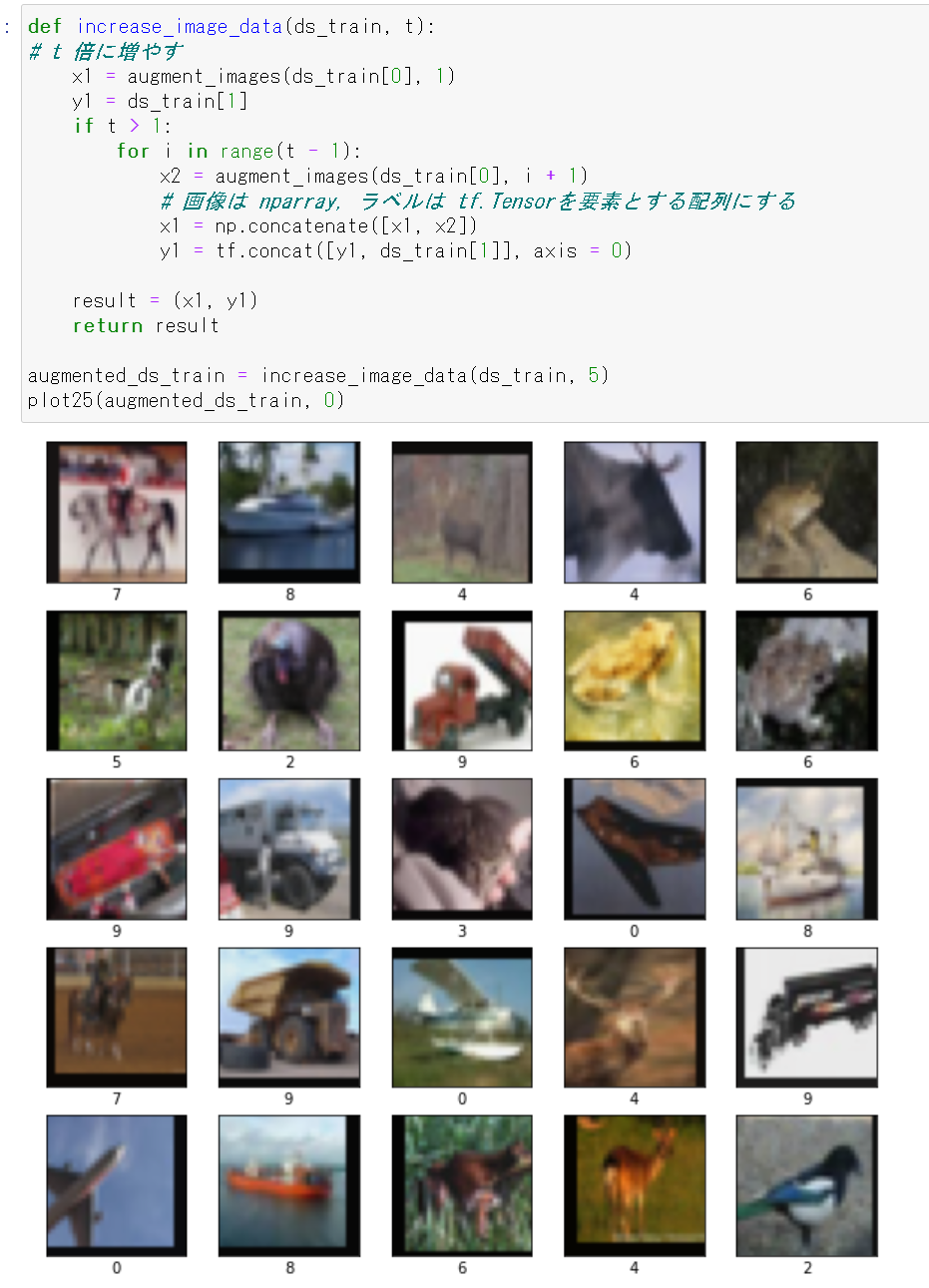

def increase_image_data(ds_train, t): # t 倍に増やす x1 = augment_images(ds_train[0], 1) y1 = ds_train[1] if t > 1: for i in range(t - 1): x2 = augment_images(ds_train[0], i + 1) # 画像は nparray, ラベルは tf.Tensorを要素とする配列にする x1 = np.concatenate([x1, x2]) y1 = tf.concat([y1, ds_train[1]], axis = 0) result = (x1, y1) return result augmented_ds_train = increase_image_data(ds_train, 5) plot25(augmented_ds_train, 0)
6. ニューラルネットワークの作成(MobileNetV2 を使用)
- ニューラルネットワークの作成と確認とコンパイル
Keras の MobileNet を使う. 「weights=None」を指定することにより,最初,重みはランダムに設定する.

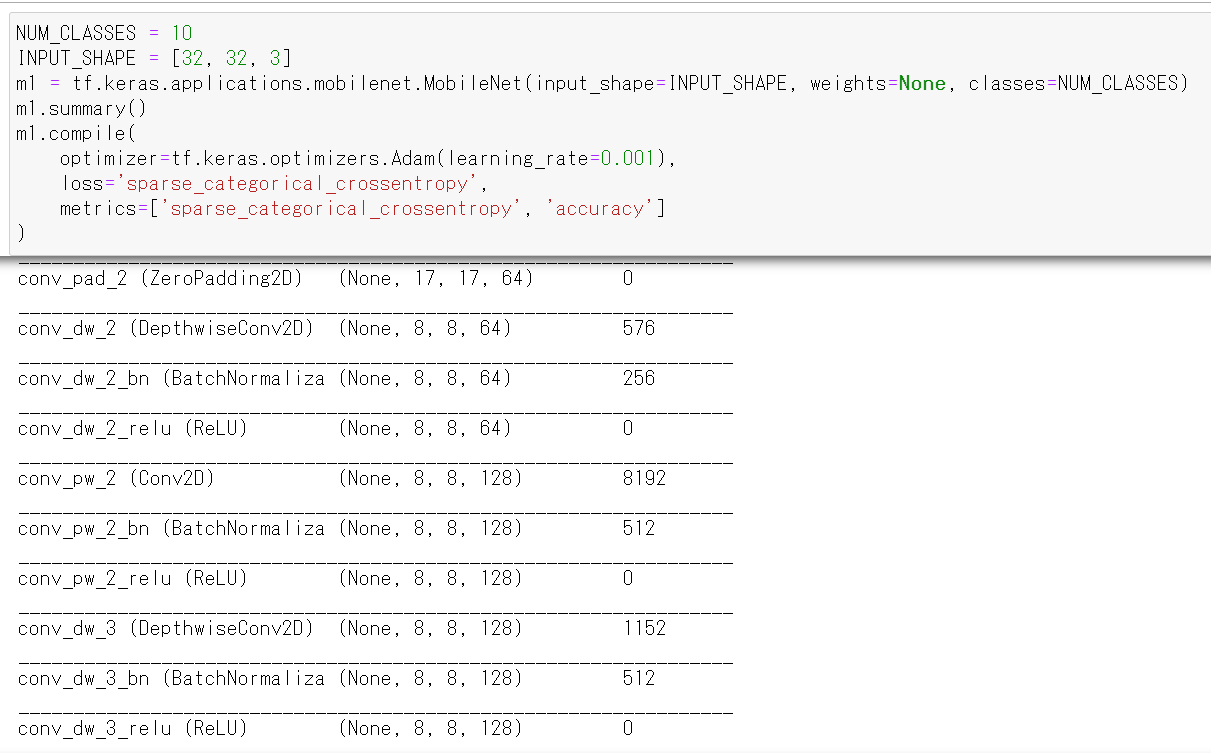

NUM_CLASSES = 10 INPUT_SHAPE = [32, 32, 3] m1 = tf.keras.applications.mobilenet.MobileNet(input_shape=INPUT_SHAPE, weights=None, classes=NUM_CLASSES) m1.summary() m1.compile( optimizer=tf.keras.optimizers.Adam(learning_rate=0.001), loss='sparse_categorical_crossentropy', metrics=['sparse_categorical_crossentropy', 'accuracy'] )
- モデルのビジュアライズ
Keras のモデルのビジュアライズについては: https://keras.io/ja/visualization/
ここでの表示で,エラーメッセージが出る場合でも,モデル自体は問題なくできていると考えられる.続行する.
from tensorflow.keras.utils import plot_model import pydot plot_model(m1)
7. ニューラルネットワークの学習(MobileNetV2 を使用)
- 使用するデータの確認

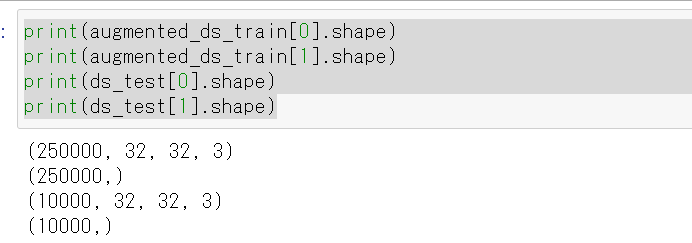

print(augmented_ds_train[0].shape) print(augmented_ds_train[1].shape) print(ds_test[0].shape) print(ds_test[1].shape)
- ニューラルネットワークの学習を行う
ニューラルネットワークの学習は fit メソッドにより行う. 教師データを使用する. 教師データを投入する.

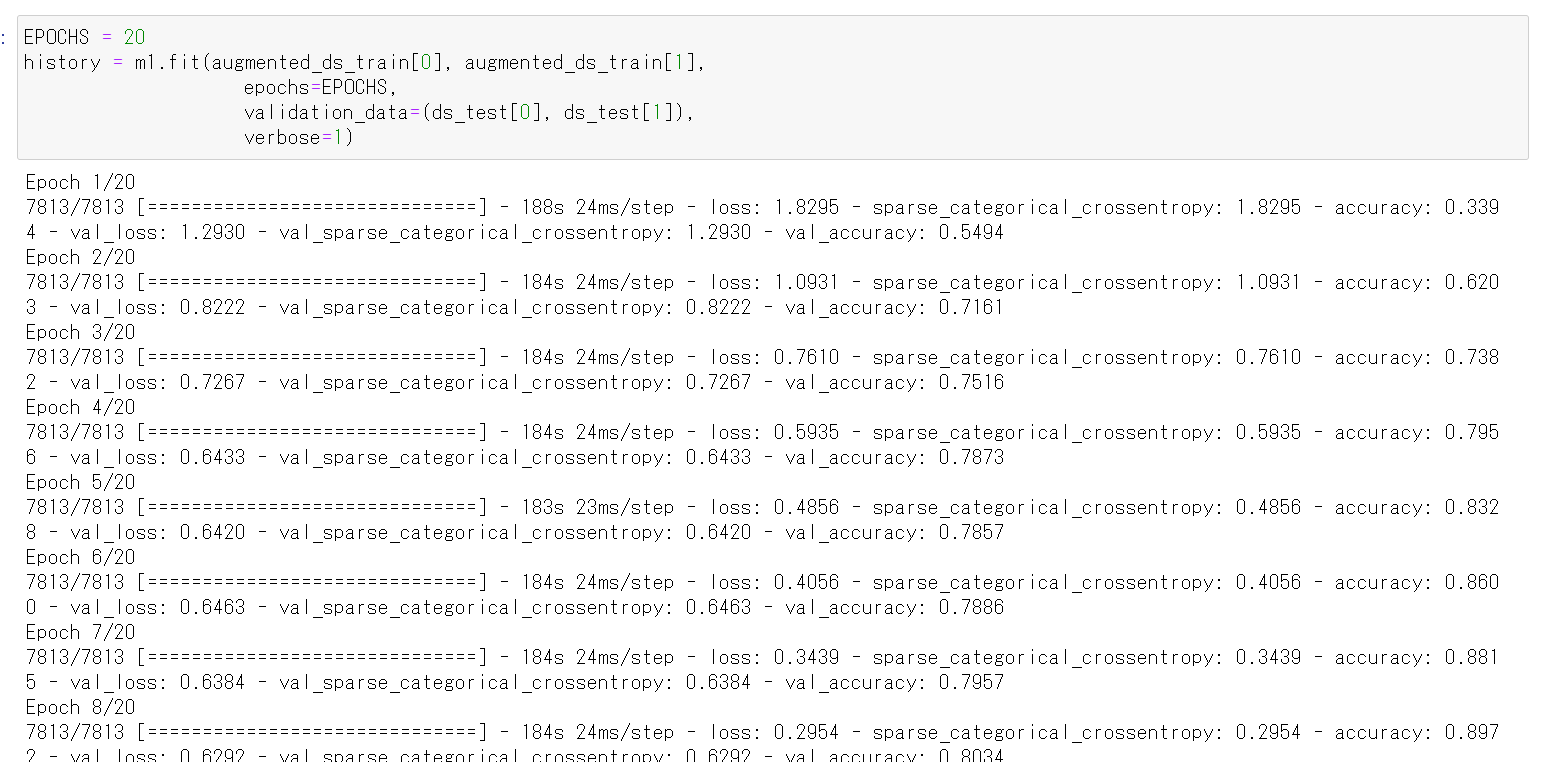

epochs = 20 history = m1.fit(augmented_ds_train[0], augmented_ds_train[1], epochs=epochs, validation_data=(ds_test[0], ds_test[1]), verbose=1)
- CNN による画像分類
ds_test を分類してみる.

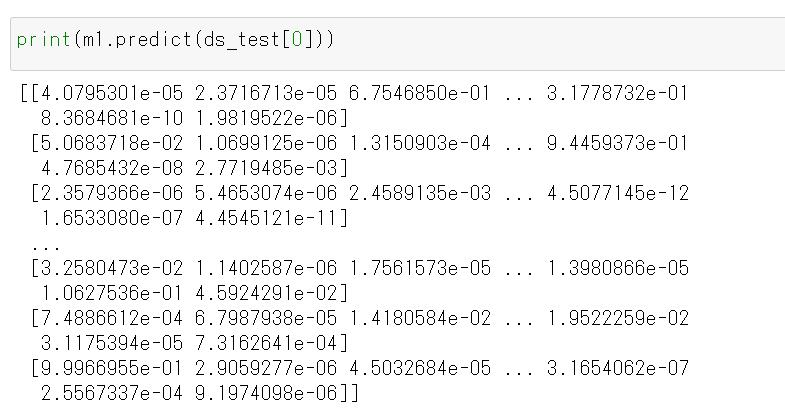

print(m1.predict(ds_test[0]))
それぞれの数値の中で、一番大きいものはどれか?

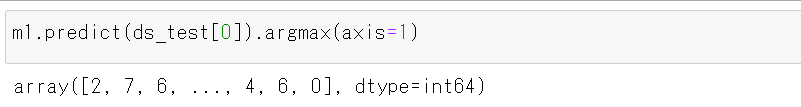

m1.predict(ds_test[0]).argmax(axis=1)
y_test 内にある正解のラベル(クラス名)を表示する(上の結果と比べるため)

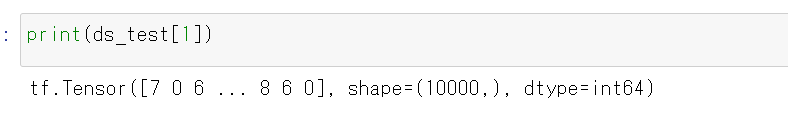

print(y_test[1])
- 学習曲線の確認
過学習や学習不足について確認.

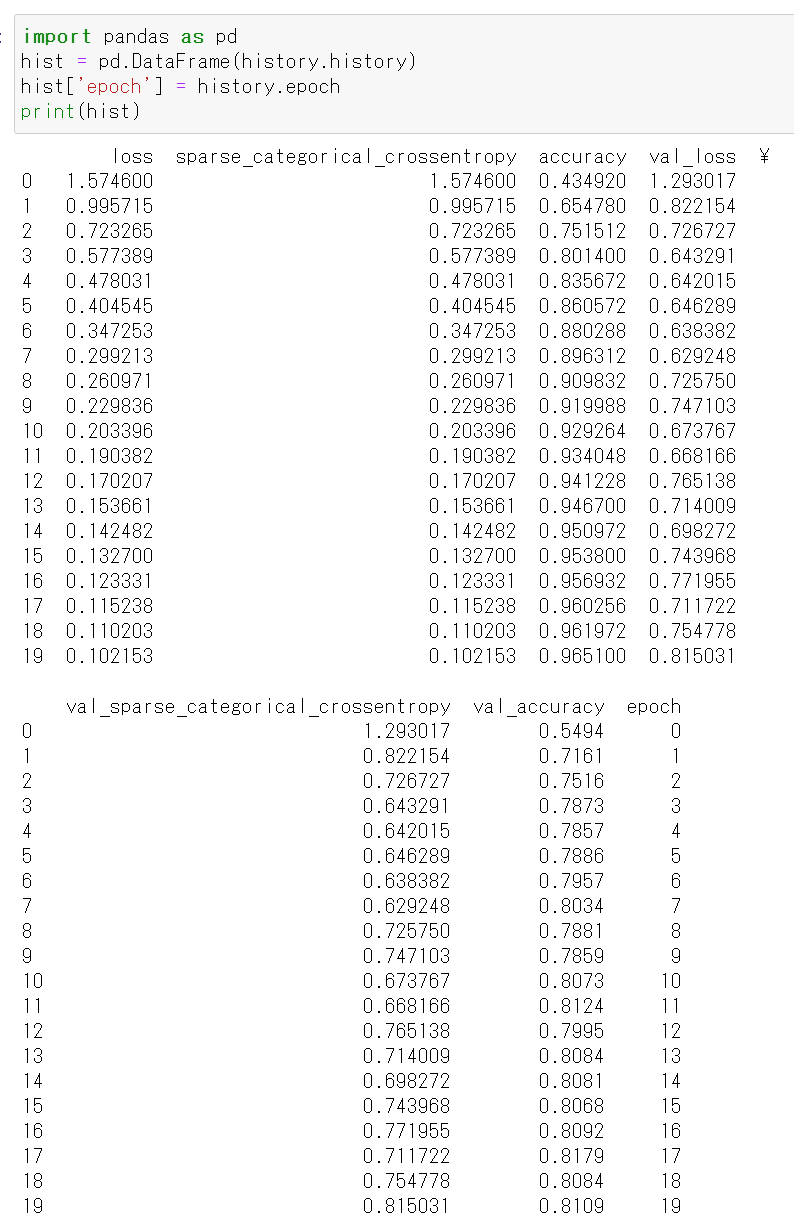

import pandas as pd hist = pd.DataFrame(history.history) hist['epoch'] = history.epoch print(hist)
- 学習曲線のプロット
過学習や学習不足について確認.
https://www.tensorflow.org/tutorials/keras/overfit_and_underfit?hl=ja で公開されているプログラムを使用

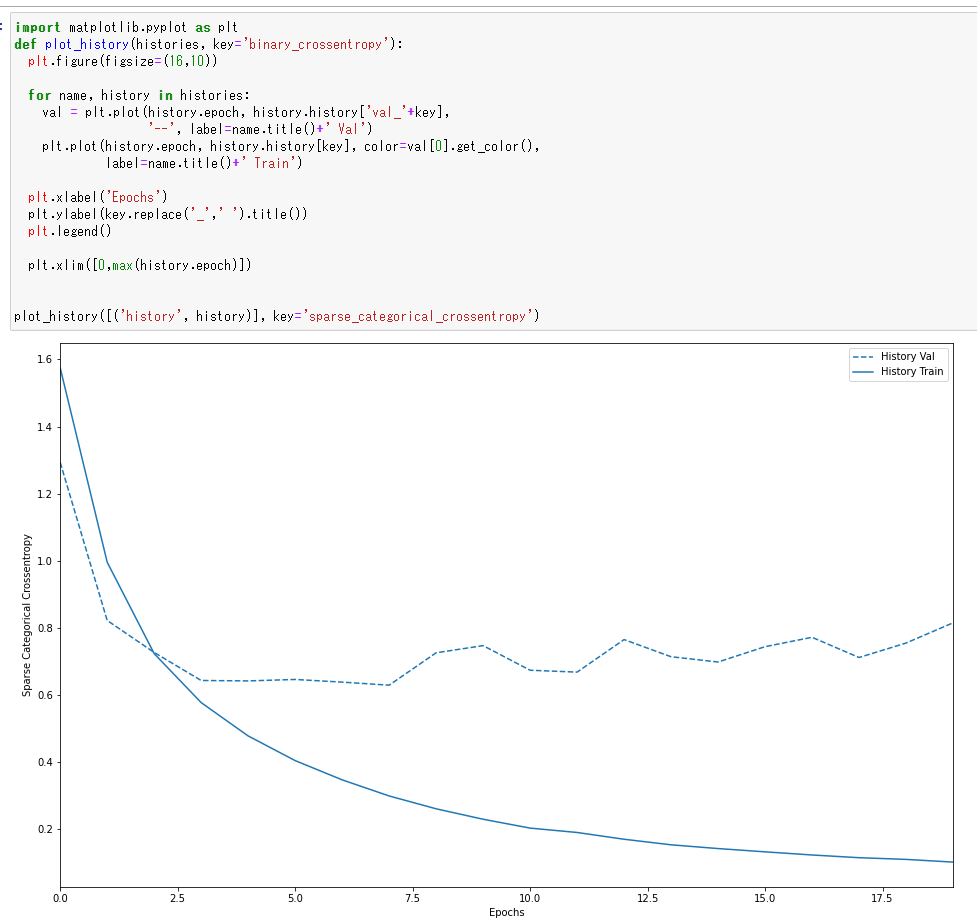

%matplotlib inline import matplotlib.pyplot as plt import warnings warnings.filterwarnings('ignore') # Suppress Matplotlib warnings def plot_history(histories, key='binary_crossentropy'): plt.figure(figsize=(16,10)) for name, history in histories: val = plt.plot(history.epoch, history.history['val_'+key], '--', label=name.title()+' Val') plt.plot(history.epoch, history.history[key], color=val[0].get_color(), label=name.title()+' Train') plt.xlabel('Epochs') plt.ylabel(key.replace('_',' ').title()) plt.legend() plt.xlim([0,max(history.epoch)]) plot_history([('history', history)], key='sparse_categorical_crossentropy')

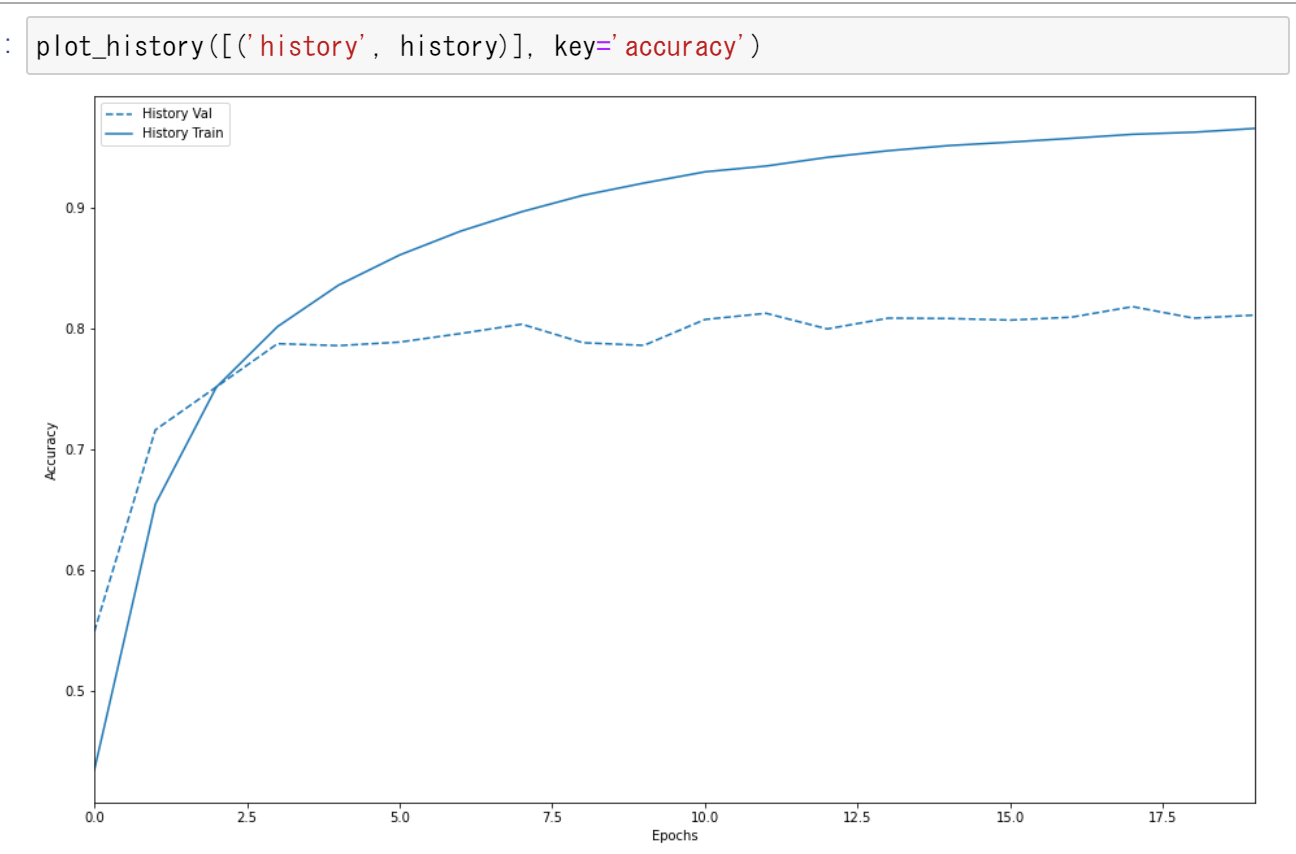

plot_history([('history', history)], key='accuracy')
データのデータ拡張を行わない場合の結果(学習曲線など)は, 別ページ »で説明
